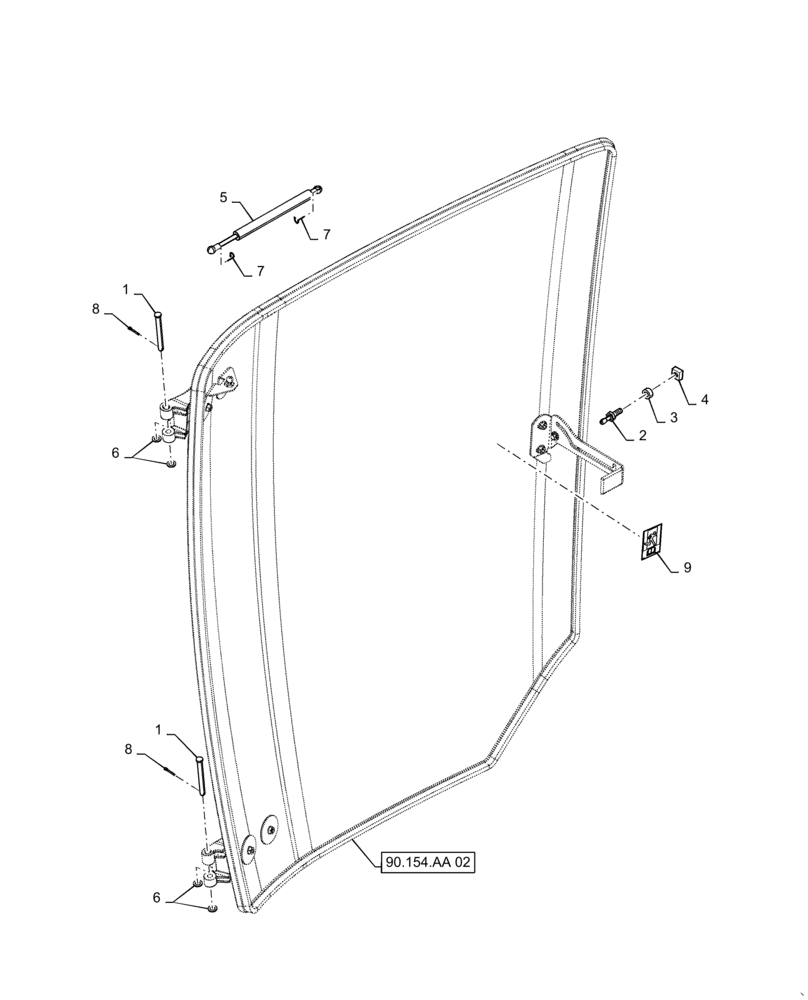

Запчасти Case IH PATRIOT 4440 (90.154.AA[03]) - EMERGENCY DOOR, RH, HARDWARE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84542381

PIN,10mm OD x 98.6mm L

Headed

2шт.

2

84434978

PIN,10mm OD x 61mm L

Right Hand Door, Serial Range: -YGT044000

1шт.

2

47910915

PIN,M10 x 1.5, 61mm L

, Start Serial: YGT044001

1шт.

3

84434981

SPACER,10.5mm ID x 20mm OD x 9mm Thk

20mm Long

1шт.

4

87015110

PLATE,Square, M10 x 1.5

M10 x 1.5mm

1шт.

5

87423389

DAMPER

Spring Gas Cylinder

1шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

7

3233348R1

CLIP

Retainer 13mm

2шт.

8

733-3220

COTTER PIN,M3.2 x 20

2шт.

9

84282117

DECAL

Emergency Exit

1шт.
