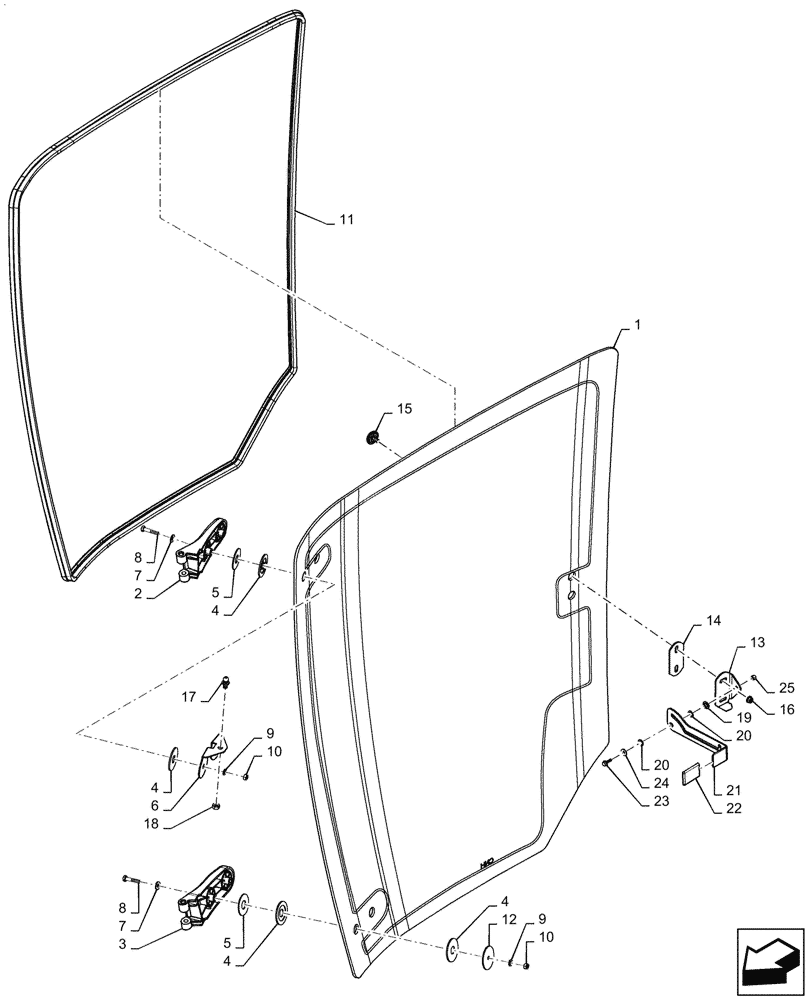

Запчасти Case IH PATRIOT 4440 (90.154.AA[02]) - RIGHT HAND DOOR ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84369532

GLASS

RH Door, Serial Range: -YGT044000

1шт.

1

47937695

GLASS

RH Door, Start Serial: YGT044001

1шт.

2

87704856

HINGE

RH Door, Upper

1шт.

3

87704857

HINGE

RH Door, Lower

1шт.

4

376336A1

RUBBER WASHER

Door Hinge

8шт.

5

376334A1

WASHER,22mm ID x 55mm OD x 2.8mm Thk

Outer Steel Door Hinge

4шт.

6

87705286

BODY

Support, Gas Spring

1шт.

7

895-30107

WASHER,M8 x 20 x 2

4шт.

8

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

11

84370668

DOOR SEAL,4882mm

, Serial Range: -YGT044000

1шт.

11

48081022

SEAL

Door, Start Serial: YGT044001

1шт.

12

376332A1

WASHER,9mm ID x 60mm OD x 3.4mm Thk

Inner Steel Door Hinge

2шт.

13

84363430

BRACKET, SUPPORTING

RH Door Latch, Serial Range: -YGT044000

1шт.

13

47945056

BRACKET

RH Door Latch, Start Serial: YGT044001

1шт.

14

87716846

SEAL

RH Door Latch

1шт.

15

198916A2

CAP,M8 x 20, Black

M8, Window Cap

2шт.

16

86981466

FLANGE NUT,M8 x 1.25, Flg, Cl 10

2шт.

17

3234063R1

BALL STUD,M10 x 1.5

Ball Stud

1шт.

18

403749A1

LOCK NUT,M10 x 1.5, Class 8.8

M10, CL8

1шт.

19

87422906

BUSHING,6.5mm ID x 19mm OD x 6.9mm L

M6

1шт.

20

87423414

WASHER

Nylon

2шт.

21

87418389

LATCH ASSY.

RH Door

1шт.

22

87423716

CAP

Vinyl

1шт.

23

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

24

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

25

832-10406

NUT,M6 x 1, Cl 8

1шт.
