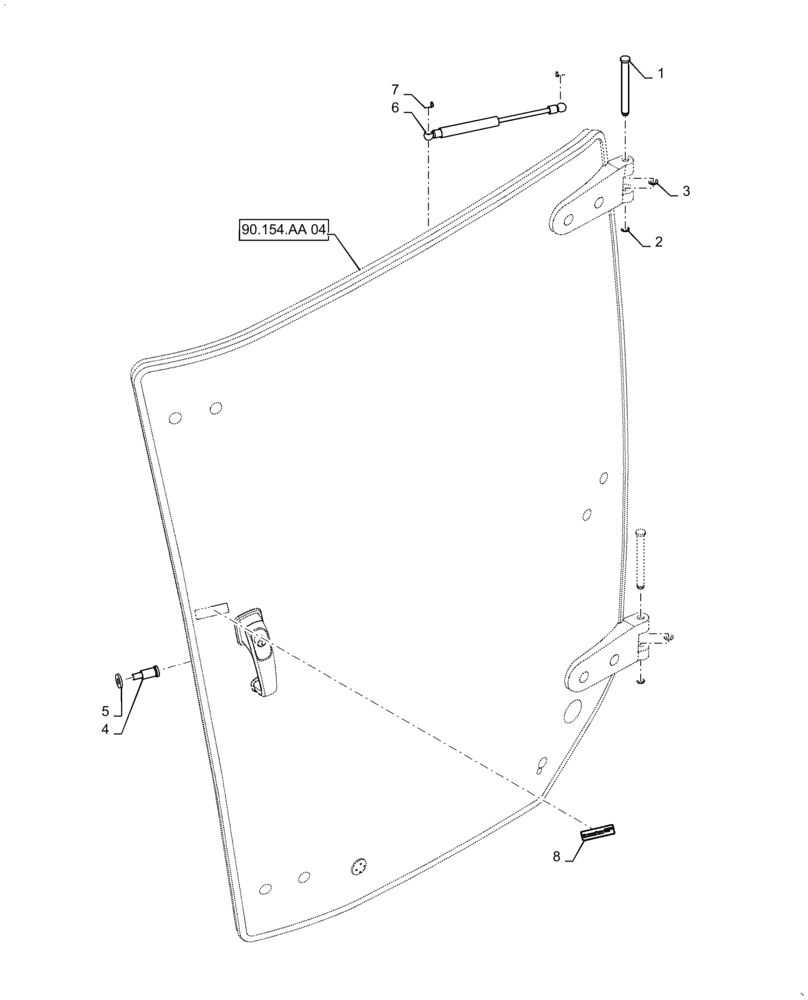

Запчасти Case IH PATRIOT 4440 (90.154.AA[01]) - DOOR, LEFT HAND, INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84476803

HEADED PIN

Hinge

2шт.

2

800-439

CIRCLIP,M9

2шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

4

321277A1

PIN,17.2mm OD x 52mm L

Striker

1шт.

5

275444A1

PLATE

Door Latch Pin

1шт.

6

1280263C1

CYLINDER ASSY.

Gas Strut

1шт.

7

3233348R1

CLIP

Retainer, 13mm

2шт.

8

84390356

DECAL

Engine Power

1шт.
