(90.151.AP[04]) - RH CONSOLE COVER ASSEMBLY AND DECALS

Запчасти Case IH PATRIOT 4440 (90.151.AP[04]) - RH CONSOLE COVER ASSEMBLY AND DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

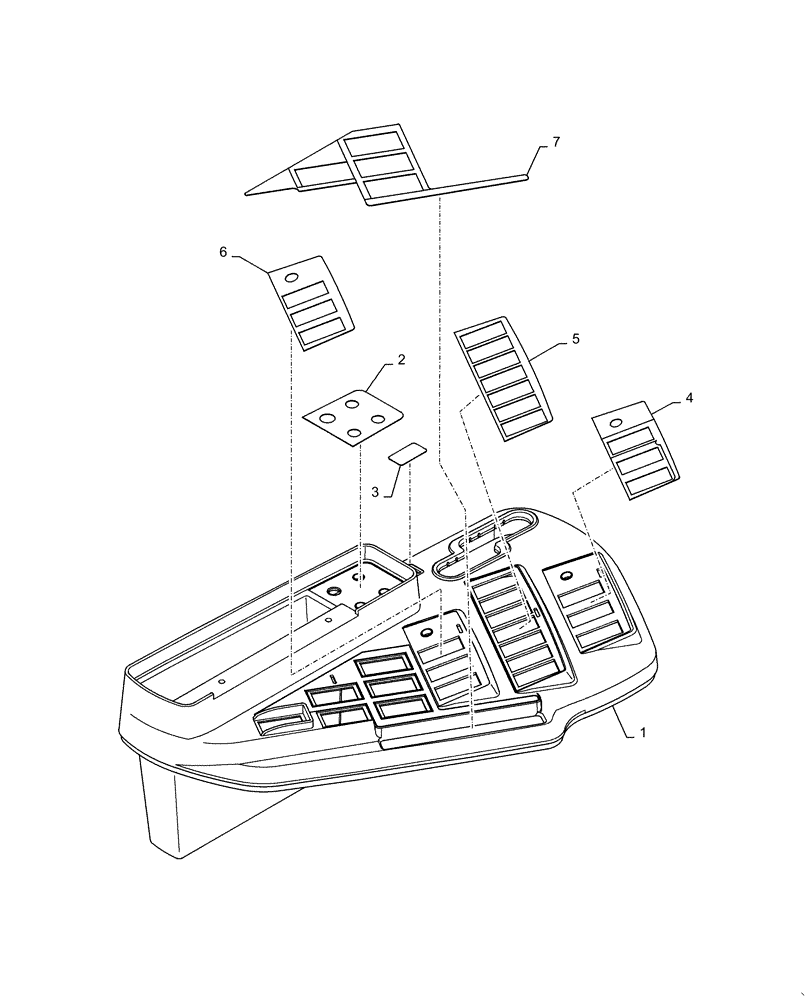

Схема запчастей Case IH PATRIOT 4440 - (90.151.AP[04]) - RH CONSOLE COVER ASSEMBLY AND DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
1
5
2
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267349

COVER

RH Console

1шт.

2

378608A1

DECAL

Wheel Spacing

1шт.

3

87267350

DECAL

Propulsion Control

1шт.

4

87266890

DECAL

Aim Command

1шт.

5

87266886

DECAL

Boom Section

1шт.

6

87266885

DECAL

Foam Control

1шт.

7

87266893

DECAL

Throttle

1шт.

Выбрано товаров: 7
