(90.151.AP[03]) - RIGHT HAND CONSOLE ARM REST ASSEMBLY

Запчасти Case IH PATRIOT 4440 (90.151.AP[03]) - RIGHT HAND CONSOLE ARM REST ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

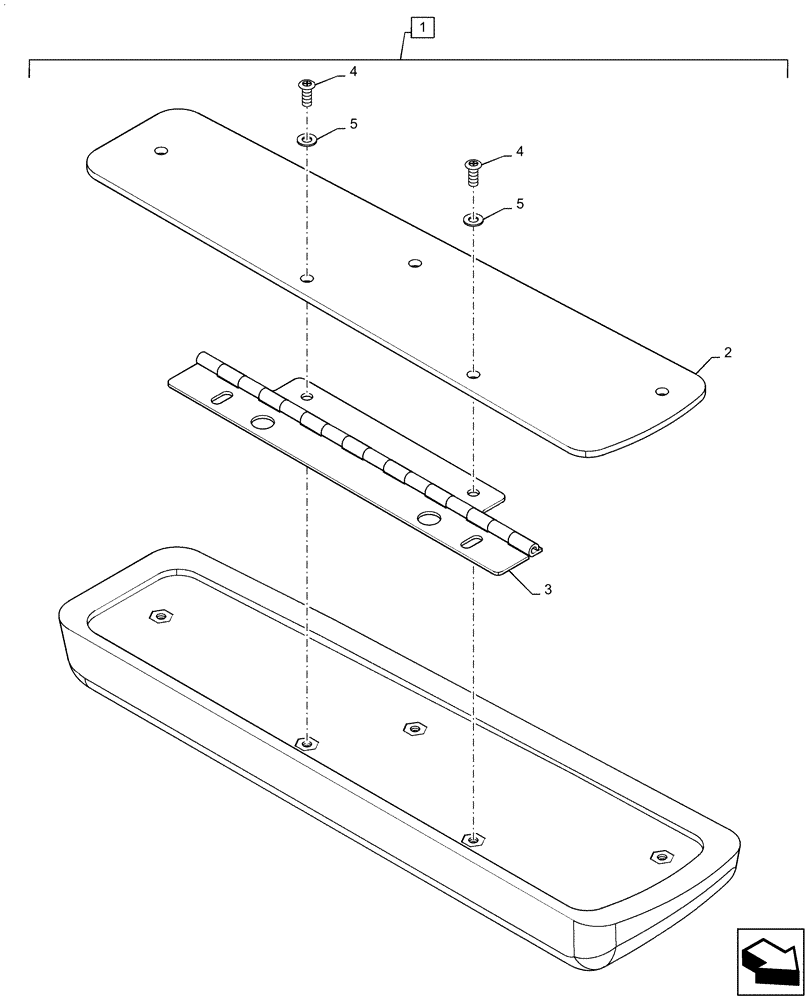

Схема запчастей Case IH PATRIOT 4440 - (90.151.AP[03]) - RIGHT HAND CONSOLE ARM REST ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
5
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

128970A3

ARMREST

RH Console Assembly, Incl 2 - 5

1шт.

2

185546A1

PLATE

Arm Rest Support

1шт.

3

128849A2

HINGE

Arm Rest

1шт.

4

87481583

SCREW,M4 x 0.7 x 0.7mm

Arm Rest Back Plate

5шт.

5

87481591

LOCK WASHER

Arm Rest Back Plate

5шт.
