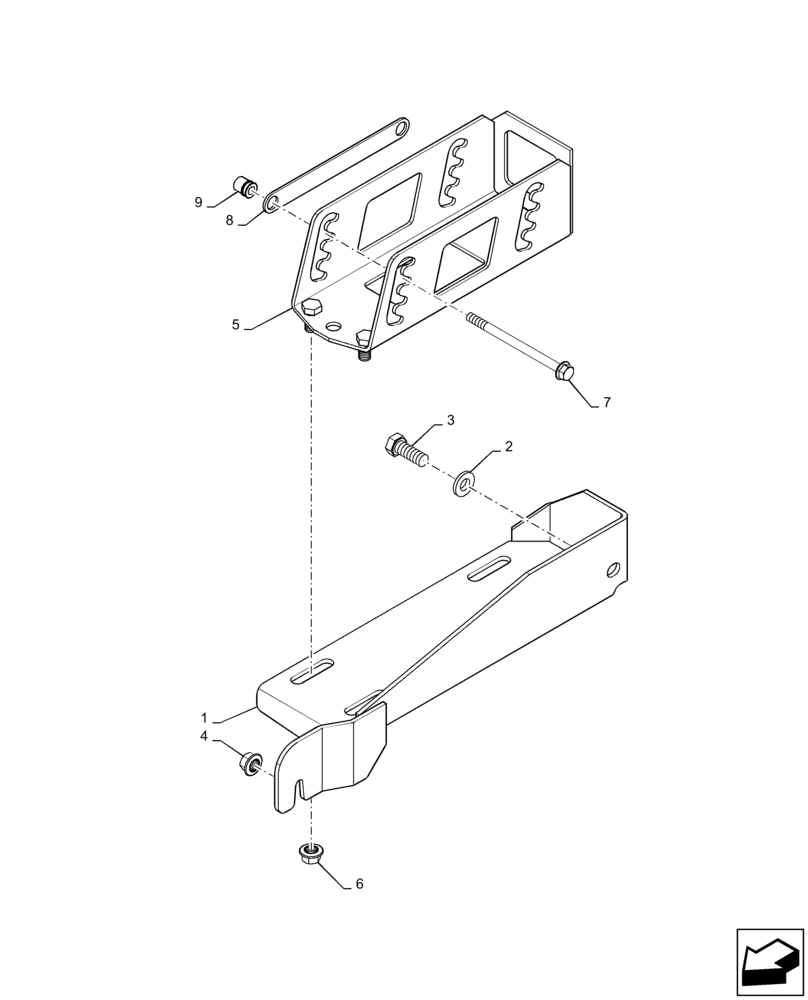

Запчасти Case IH PATRIOT 4440 (90.151.AP[02]) - RH CONSOLE MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN317670

MOUNTING PLATE

Control Console

1шт.

2

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

4

87344227

SERRATED NUT

Serrated, M8, SPL, DOR

1шт.

5

BN321613

SLIDE

Lower, Adjustable

1шт.

6

87344219

FLANGE NUT,M10 - 1.5, 8, DOR, Flange

4шт.

7

87344205

BOLT,Flg, M8 x 1.25 x 120mm, Cl 10.9

2шт.

8

BN325246

RETAINER

Slide

1шт.

9

408566A1

INSERT,M8

Threaded

2шт.
