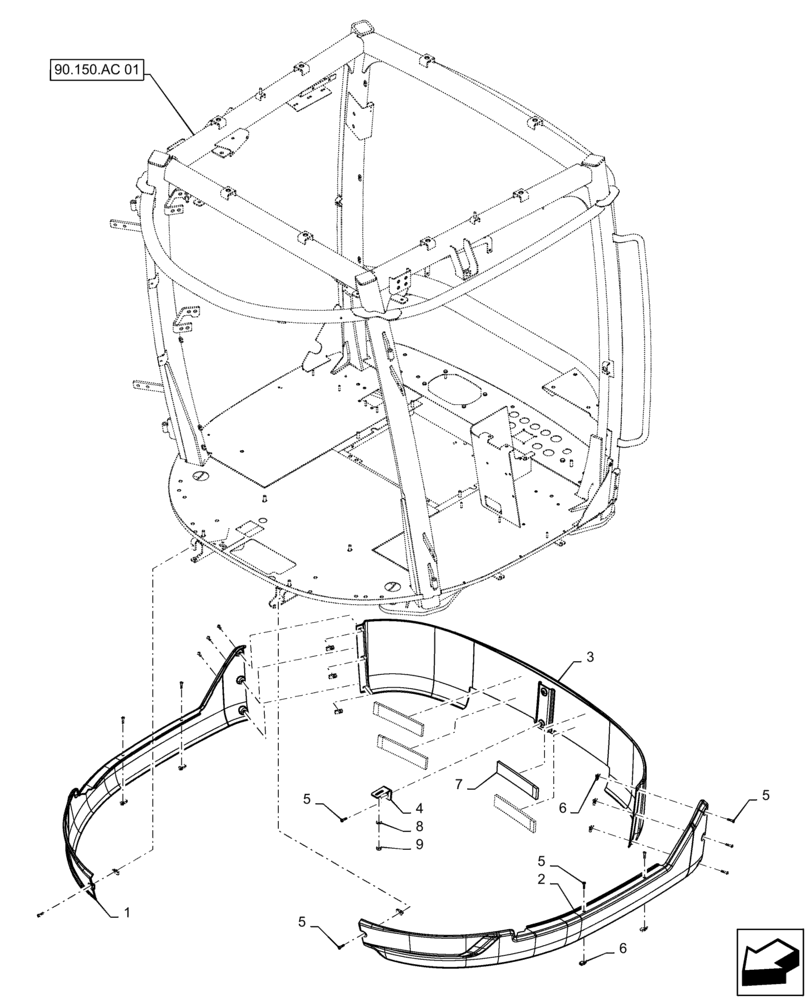

Запчасти Case IH PATRIOT 4440 (90.150.BJ[01]) - CAB SKIRTS, RH AND LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84598212

COVER

RH, Cab

1шт.

2

84398111

SKIRT COVER

LH, Cab

1шт.

3

47362402

COVER

Rear Skirt Assembly

1шт.

4

84362939

BRACKET, SUPPORTING

Mounting, Rear Skirt

1шт.

5

87343619

SCREW,Phil Pan Hd, M6 x 25mm, Cl 4.8, Full Thd

13шт.

6

404882A1

SPRING NUT,M6

M6, Spring Nut

12шт.

7

403325A2

FOAM,30mm x 50mm x 250mm

Spacer Blocks, Closed Cell

4шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.
