(90.150.AC[01]) - CAB FRAME

Запчасти Case IH PATRIOT 4440 (90.150.AC[01]) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

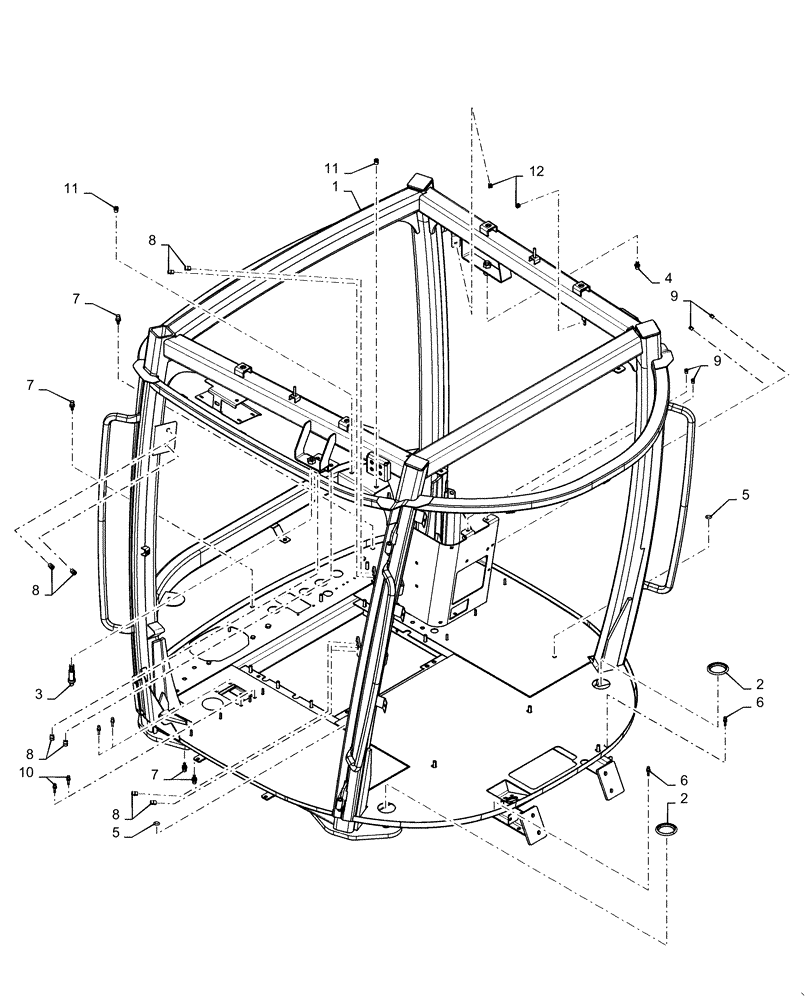

Схема запчастей Case IH PATRIOT 4440 - (90.150.AC[01]) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
6
10
9
7
6
7
8
5
12
9
4
5
1
2
2
11
8
3
8
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Cab Frame

1шт.

2

353-593

PLUG

Button Recessed, Nominal 2.5"

2шт.

3

442085A1

MOUNTING PARTS

Ball Stud

3шт.

4

3234063R1

BALL STUD,M10 x 1.5

Ball Stud

2шт.

5

64-146

PLUG

Cap .5", Black Poly

3шт.

6

408567A1

STUD

Threaded Captive

2шт.

7

449068A1

STUD

Threaded Captive

6шт.

8

379540A1

INSERT,M8

Threaded Knurled Open, M8

14шт.

9

404287A1

INSERT,M6

Threaded Knurled Open, M6

9шт.

10

440570A1

STUD

Threaded Captive

12шт.

11

408566A1

INSERT,M8

Threaded Knurled Open, M8

5шт.

12

322072A2

FASTENER

Plastic Expansion

7шт.
