(90.130.AH[03]) - CROP SHIELD, REMOVABLE ASSY

Запчасти Case IH PATRIOT 4440 (90.130.AH[03]) - CROP SHIELD, REMOVABLE ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

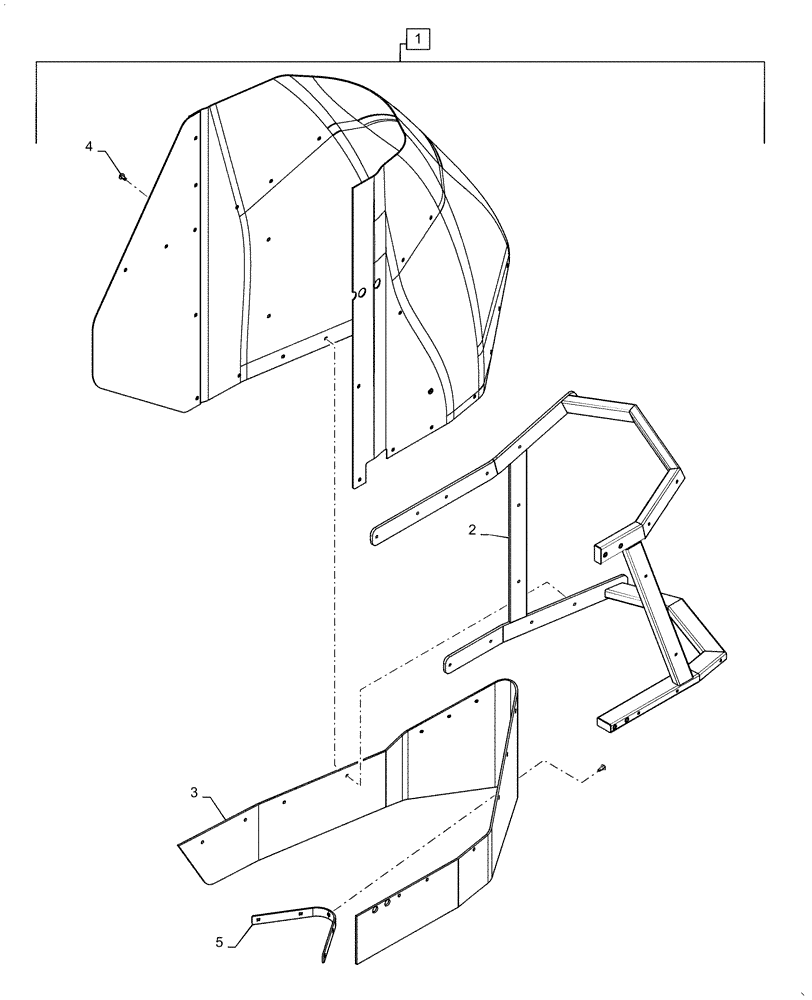

Схема запчастей Case IH PATRIOT 4440 - (90.130.AH[03]) - CROP SHIELD, REMOVABLE ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
1
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47750331

SHIELD

Crop, Removable, Assy, LH, Incl 2 - 5

1шт.

1

47750332

SHIELD

Crop, Removable, Assy, RH, Incl 2 - 5

1шт.

2

47750404

FRAME

Removable, LH

1шт.

2

47750405

FRAME

Removable, RH

1шт.

3

47750012

SHIELD

Skirt, Nose

1шт.

4

47846360

CLIP

Fender, Plastic

36шт.

5

47835532

BAR

Nose

1шт.

Выбрано товаров: 7
