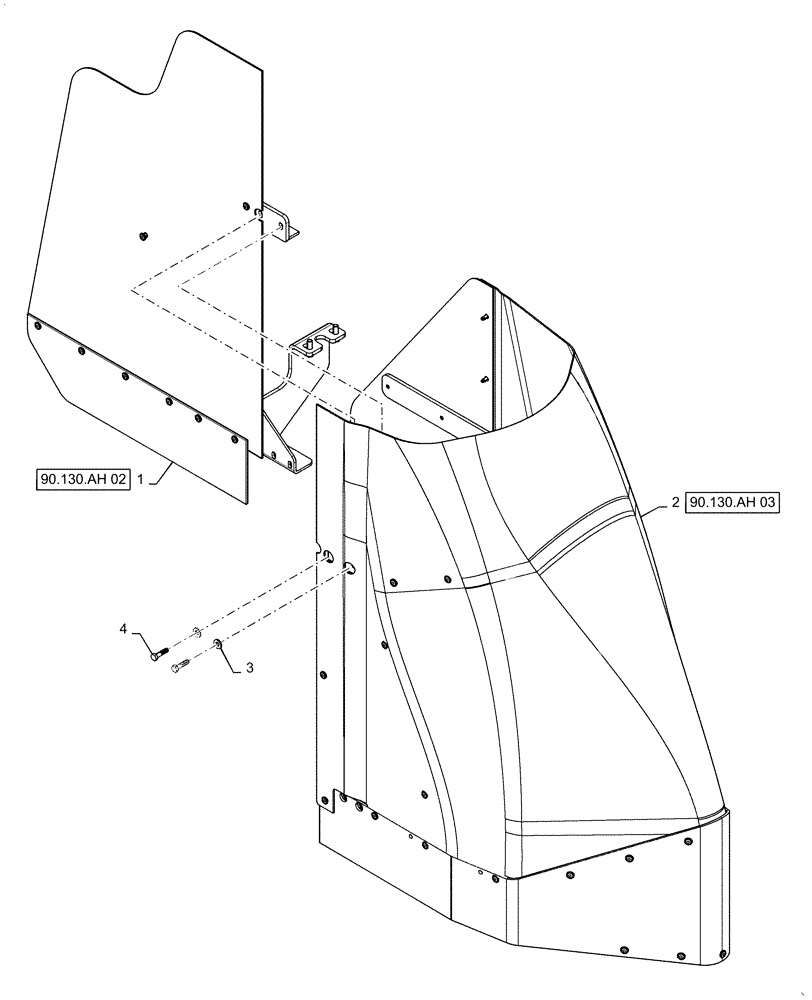

Запчасти Case IH PATRIOT 4440 (90.130.AH[01]) - CROP SHIELD ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47750328

SHIELD

Crop, Fixed, Assy, LH

2шт.

See 90.130.AH 02 for Service

1шт.

1

47750329

SHIELD

Crop, Fixed, Assy, RH

2шт.

See 90.130.AH 02 for Service

1шт.

2

47750331

SHIELD

Crop, RMV, Assy, LH

2шт.

See 90.130.AH 03 for Service

1шт.

2

47750332

SHIELD

Crop, RMV, Assy, RH

2шт.

See 90.130.AH 03 for Service

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

Crop Shield

16шт.

4

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

Crop Shield

16шт.
