(27.100.AT[03]) - SHOCK ABSORBERS

Запчасти Case IH PATRIOT 4440 (27.100.AT[03]) - SHOCK ABSORBERS (27) - REAR AXLE SYSTEM

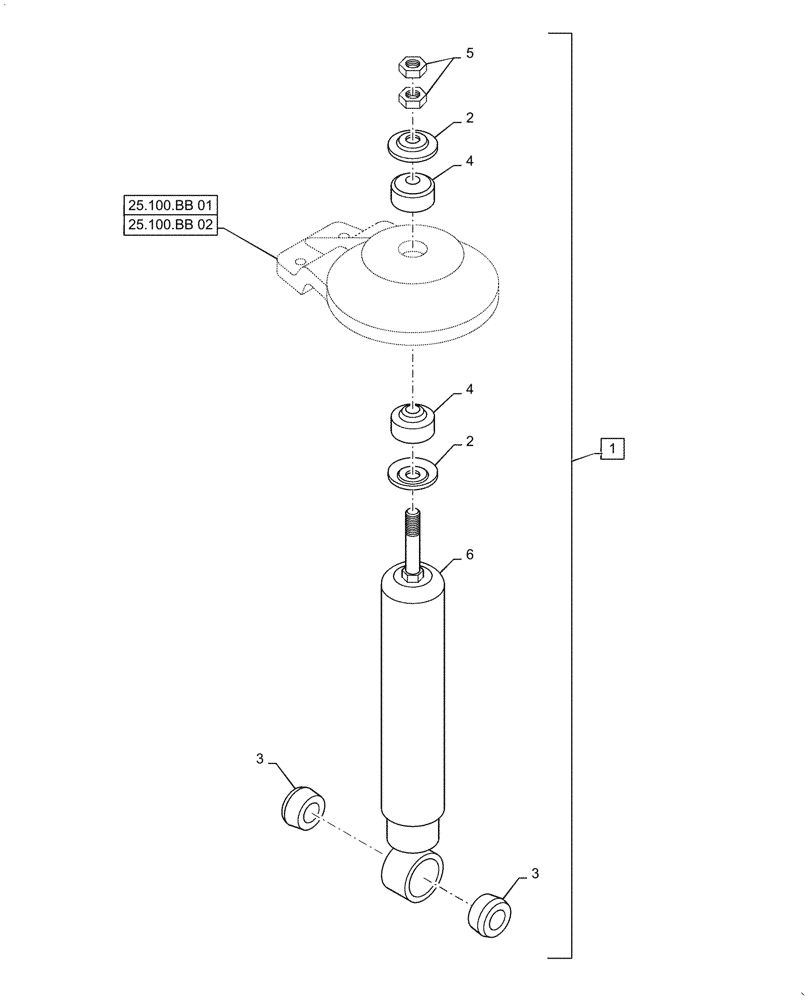

Схема запчастей Case IH PATRIOT 4440 - (27.100.AT[03]) - SHOCK ABSORBERS (27) - REAR AXLE SYSTEM
25.100.bb 02
2
4
2
1
4
6
3
5
3
25.100.bb 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313250

SUSPENSION

Shock Assembly, Incl 2 - 6

1шт.

2

BN313440

WASHER

Retainer

2шт.

3

BN313441

BUSHING,25.2mm ID x 47.63mm OD x 25.32mm L

Rod End, Shock Absorber

2шт.

4

BN324082

BUSHING

Threaded End, Shock Absorber

2шт.

5

87564738

JAM NUT

5/8-18, Gr 8

2шт.

6

343351A1

SHOCK ABSORBER

Suspension

1шт.

Выбрано товаров: 0
