(90.124.AE[02]) - LUXURY LEATHER SEAT ASSEMBLY, SN YET0040000 AND BEFORE

Запчасти Case IH PATRIOT 4440 (90.124.AE[02]) - LUXURY LEATHER SEAT ASSEMBLY, SN YET0040000 AND BEFORE (90) - PLATFORM, CAB, BODYWORK AND DECALS

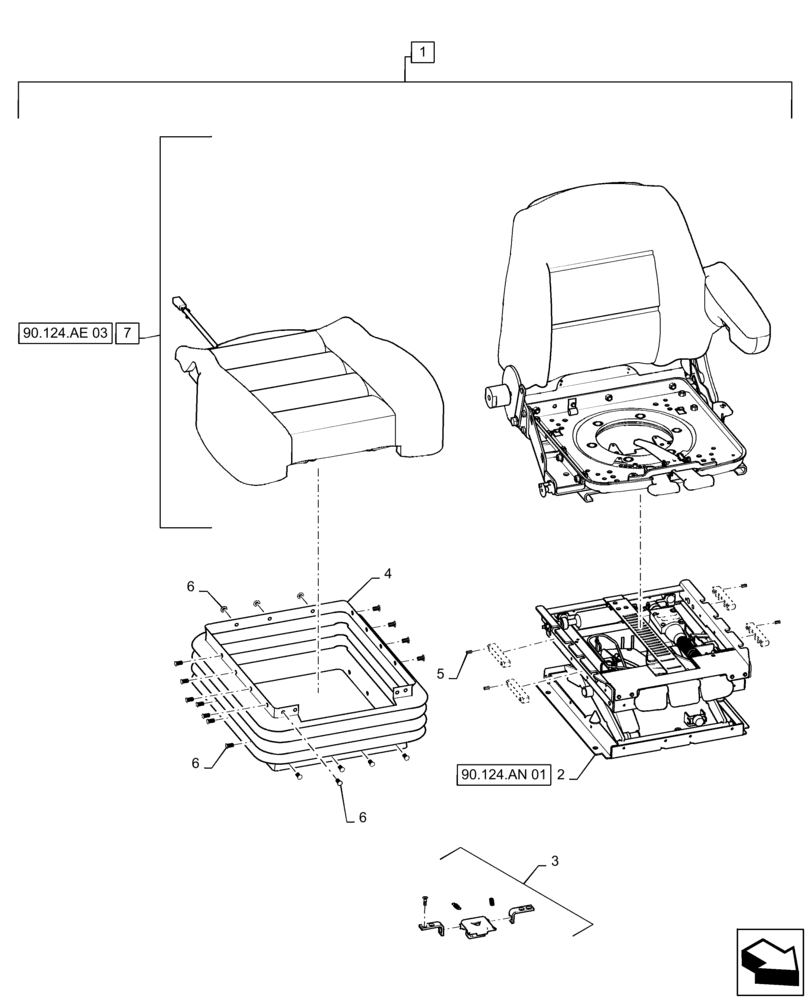

Схема запчастей Case IH PATRIOT 4440 - (90.124.AE[02]) - LUXURY LEATHER SEAT ASSEMBLY, SN YET0040000 AND BEFORE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.an 01
3
4
7
1
2
2
6
5
90.124.ae 03
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84162216

SEAT

Complete, Luxury, Leather Seat With Air Suspension And 3 Position Heat

1шт.

2

84406039

SERVICE KIT

Complete Air Suspension

1шт.

See 90.124.AN 01

1шт.

3

87347934

LATCH

Slide, Kit

1шт.

4

87347943

SERVICE KIT

Seat Boot

1шт.

5

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

6

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.

7

87486630

SEAT

Assembly, Seat Top And Bottom, Red Leather

1шт.

See 90.124.AE 03

1шт.
