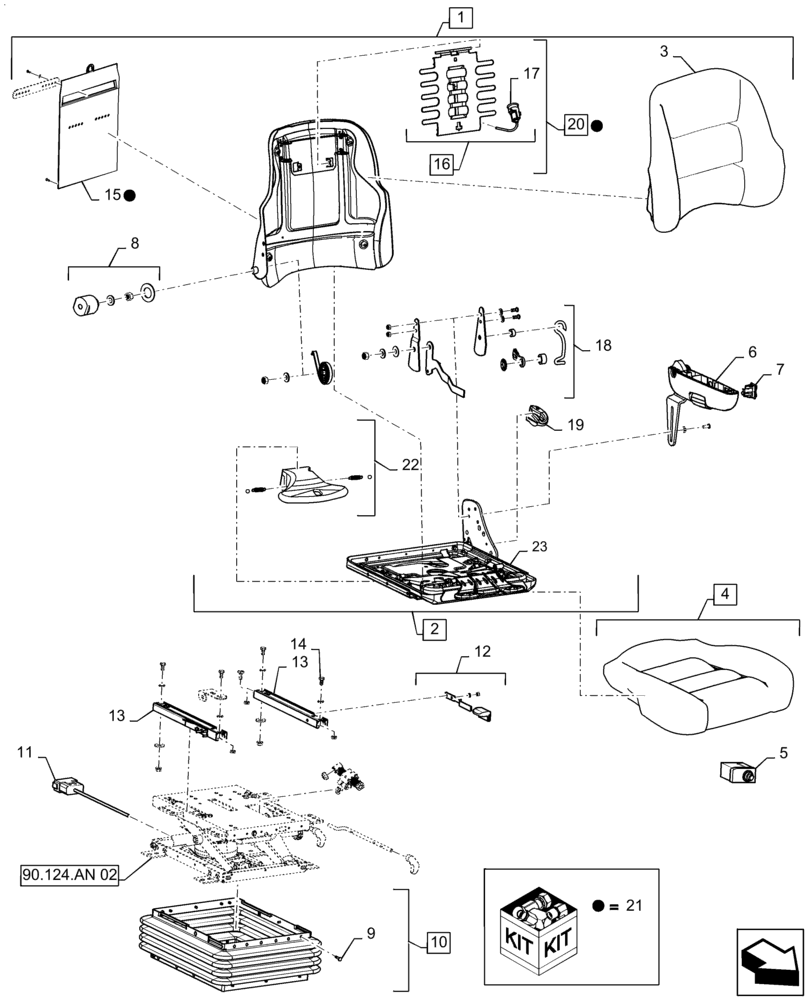

Запчасти Case IH PATRIOT 4440 (90.124.AD[04]) - DELUXE SEAT TOP ASSEMBLY, CLOTH, NO HEAT, SN YET0040001 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47491338

DRIVER SEAT

Complete, Incl 2 - 23

1шт.

2

47729472

SERVICE KIT

Seat Frame Less Cushions And Arm Rest, Incl 16 - 23

1шт.

3

47729591

SEAT BACK

Cloth

1шт.

4

47876640

SEAT CUSHION

Cloth, Incl 5

1шт.

5

47876641

PUSH BUTTON SWITCH

Operators Presence

1шт.

6

47598662

ARMREST

W/O Switches

1шт.

7

87347940

ROCKER SWITCH

Seat Height Adjustment

1шт.

8

87396230

BUSHING

Console

1шт.

9

333659A1

PACKAGE,SERVICE

Boot Pins

1шт.

10

47598678

BOOT

Suspension, Inc 9

1шт.

11

84347599

HARNESS

Seat Suspension

1шт.

12

47598687

SLIDE

Control Handle

1шт.

13

47729597

SLIDE

Seat, 160mm

1шт.

14

47357001

SERVICE KIT

Cushion Attachment

1шт.

15

47598658

HOLDER

Operators Manual

1шт.

16

47357018

KIT

Seat, Lumbar, Incl 17, Included In 20

1шт.

17

47598681

KNOB

Lumbar, Included In 16, 20

1шт.

18

47357023

KIT

Recliner Assembly

1шт.

19

47357025

KNOB

Recline Control

1шт.

20

47607664

SEAT BACK

Pan, With Lumbar, Incl 17

1шт.

21

47598722

SEAT BACK

Pan Kit With Lumbar, And Manual Holder, Incl 15, 20

1шт.

22

47598697

KNOB

Swivel Control

1шт.

23

47729592

PLATE

Lower Swivel

1шт.
