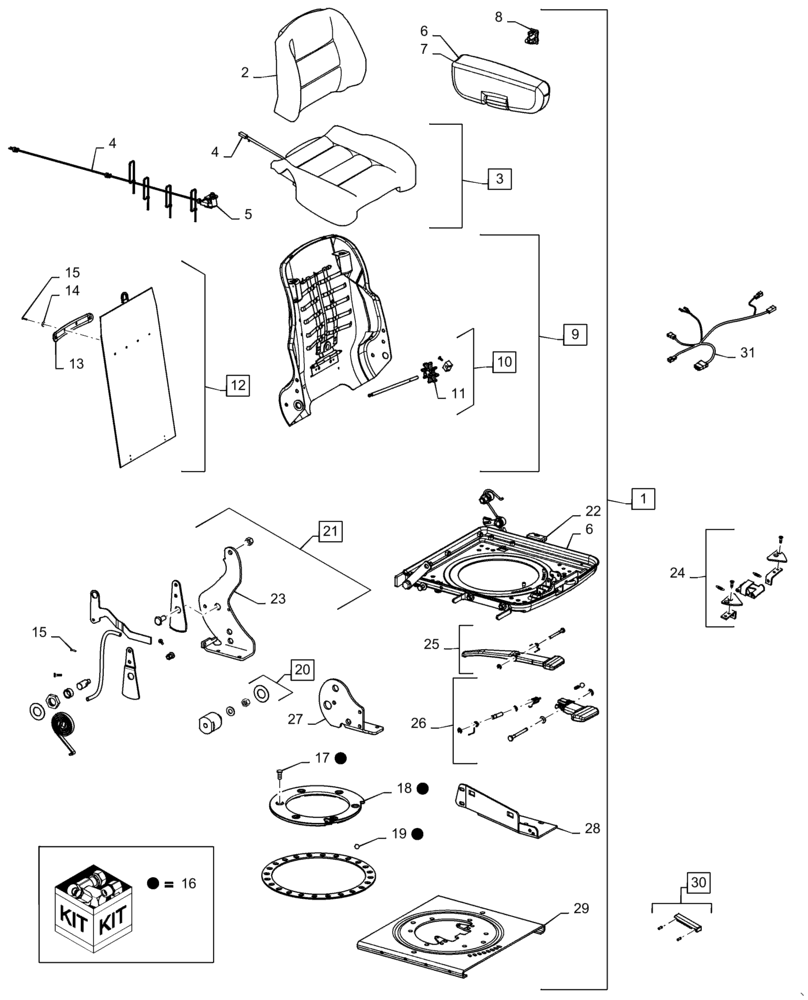

Запчасти Case IH PATRIOT 4440 (90.120.AD[03]) - DELUXE SEAT TOP ASSEMBLY, CLOTH, NO HEAT, SN YET0040000 AND BEFORE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84162220

SEAT

Assembly, Top, Incl 2 - 23, 25 - 29

1шт.

2

84120474

CUSHION

Back, CIH Wheat

1шт.

3

84120473

SEAT CUSHION

CIH Wheat, Incl 4 - 5

1шт.

4

87568463

WIRE HARNESS

Operator Presence

1шт.

5

86400227

SWITCH,Two Connectors, 90° Terminals

Operator Presence, W/ Boot

1шт.

6

87347939

SERVICE KIT

LH Armrest Assembly

1шт.

7

87667335

ARMREST

Pad, LH

1шт.

8

87347940

ROCKER SWITCH

Height Adjust Switch, W/ Valve

1шт.

9

86994155

ASSEMBLY

Back Pan, W/ Lumbar, W/ Pouch, Incl 10 - 12

1шт.

10

87308130

SEAT BACK ADJUST DEV

Lumbar Kit, Without Knob

1шт.

11

87037462

SEAT BACK ADJUST DEV

Lumbar Knob Kit

1шт.

12

86994172

SERVICE KIT

Manual Holder, Incl 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Manual Holder, Included In 12

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, 1/8" x 23/64" x 3/64", Included In 12

4шт.

15

NSS

NOT SOLD SEPARAT

Rivet, Pop, 1/8", Included In 12

4шт.

16

87347936

SERVICE KIT

Swivel, Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt, Swivel Retainer, Included In 16

6шт.

18

NSS

NOT SOLD SEPARAT

Retainer, Swivel, Included In 16

1шт.

19

NSS

NOT SOLD SEPARAT

Ball, 1/2", Included In 16

24шт.

20

87396230

BUSHING

Console, Kit

1шт.

21

86994165

SEAT ACCESSORY

Recliner Kit, Incl 15

1шт.

22

87416475

KNOB

Recliner

1шт.

23

NSS

NOT SOLD SEPARAT

Bracket, Arm Rest, Included In 21

1шт.

24

87347934

LATCH

Seat Slide

1шт.

25

87347941

SERVICE KIT

Slide Control

1шт.

26

87347942

SERVICE KIT

Swivel Control

1шт.

27

NSS

NOT SOLD SEPARAT

Bracket, Included In 3

1шт.

28

86994157

BRACKET

Console Mounting, Front

1шт.

29

87347956

SERVICE KIT

Plate, Lower Swivel

1шт.

30

302016A1

PACKAGE,SERVICE

Slide Puck

1шт.

31

84347599

HARNESS

Seat Suspension

1шт.
