(90.120.AD[01]) - DELUXE CLOTH SEAT MOUNTING, NO HEAT

Запчасти Case IH PATRIOT 4440 (90.120.AD[01]) - DELUXE CLOTH SEAT MOUNTING, NO HEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

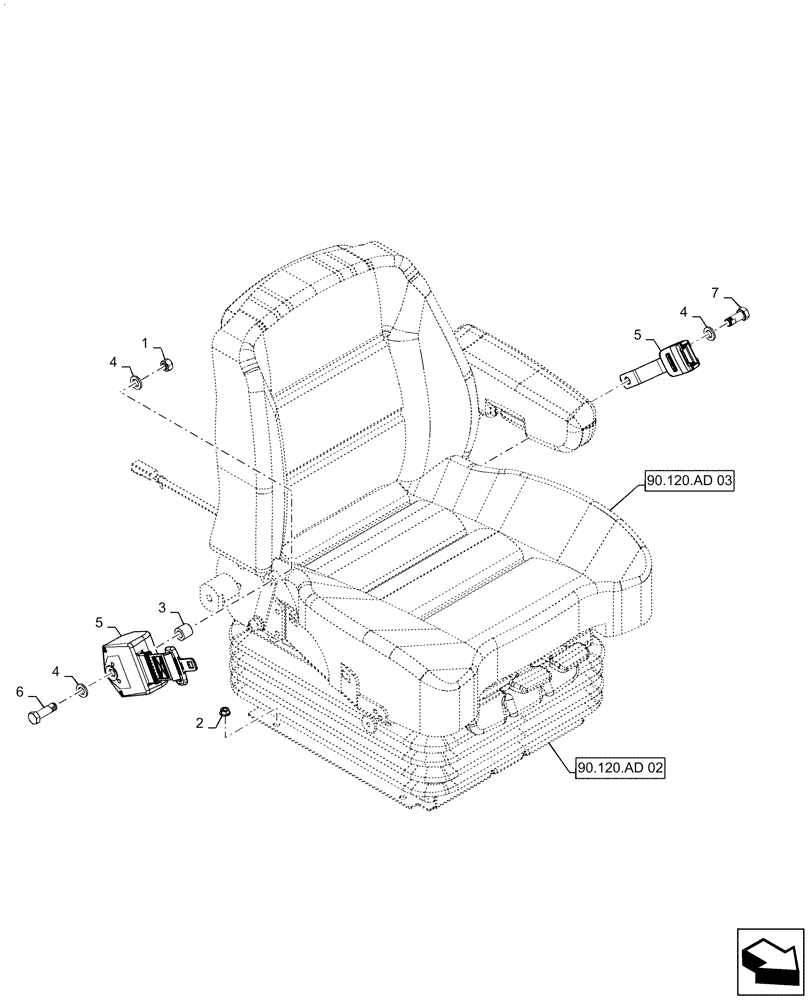

Схема запчастей Case IH PATRIOT 4440 - (90.120.AD[01]) - DELUXE CLOTH SEAT MOUNTING, NO HEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
5
5
2
1
4
3
4
90.120.ad 03
90.120.ad 02
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

2

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

3

87313413

TUBE SPACER

.875" x .5"

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

84257916

SEAT BELT,48mm W x 1447.8mm L

Assembly, Belt and Buckle

1шт.

6

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

7

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

Выбрано товаров: 7
