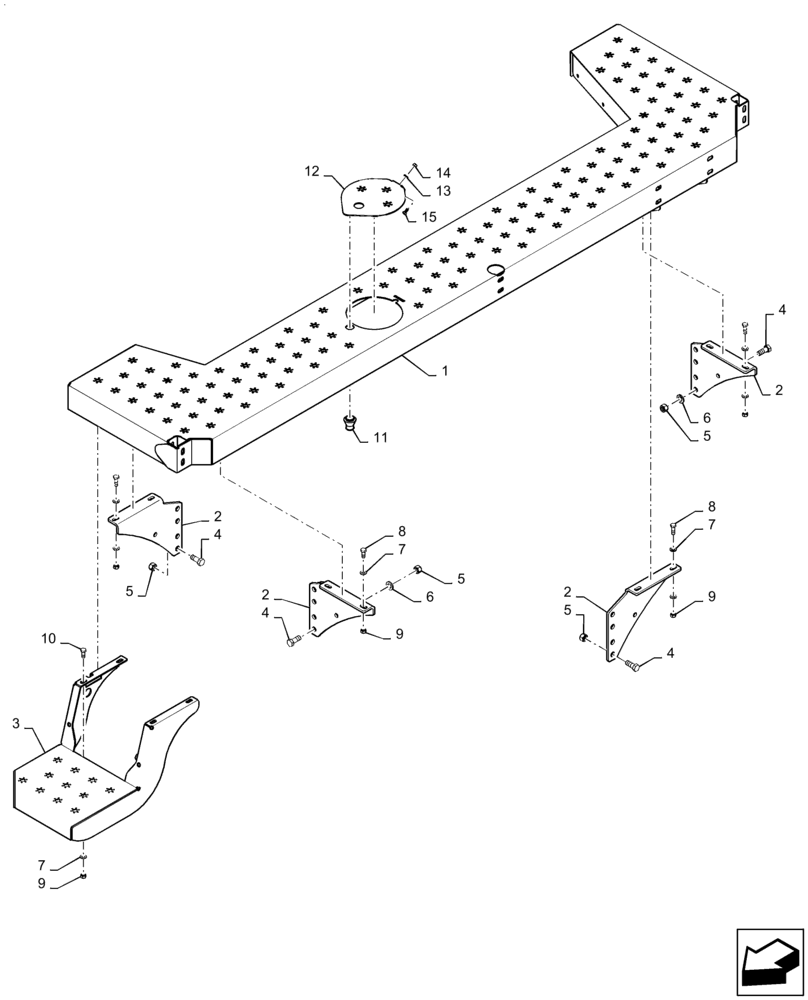

Запчасти Case IH PATRIOT 4440 (90.118.CB[02]) - MIDDLE WALKWAY PLATFORM, SN YFT041440 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47661662

WALKWAY

Middle

1шт.

2

48096092

Walkway

SUPPORT

4шт.

3

87268615

STEP

Walkway

1шт.

4

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

20шт.

8

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

87270792

LATCH

Magnetic

1шт.

12

47649838

COVER

Walkway Access

1шт.

13

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

14

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

15

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

1шт.
