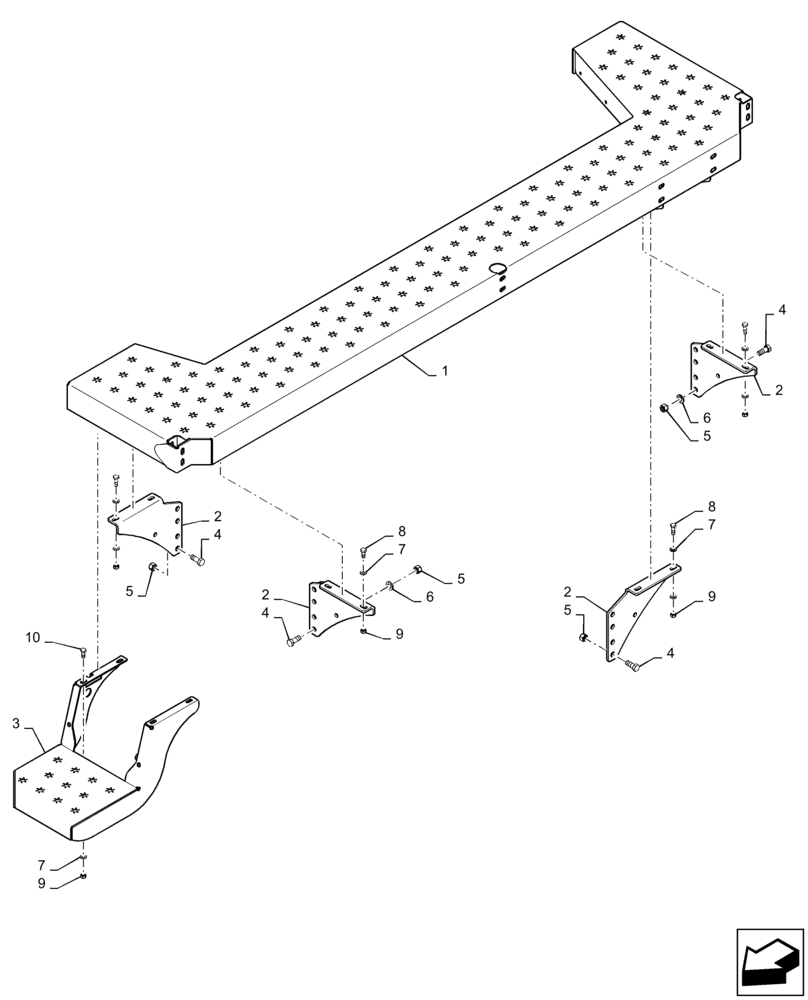

Запчасти Case IH PATRIOT 4440 (90.118.CB[01]) - MIDDLE WALKWAY PLATFORM, BSN YFT041440 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87265511

FLOOR

Deckplate, LH Center

1шт.

2

84536532

SUPPORT

Walkway

4шт.

3

87268615

STEP

1шт.

4

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

20шт.

8

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
