(90.118.BM[03]) - ELECTRIC MIRRORS

Запчасти Case IH PATRIOT 4440 (90.118.BM[03]) - ELECTRIC MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

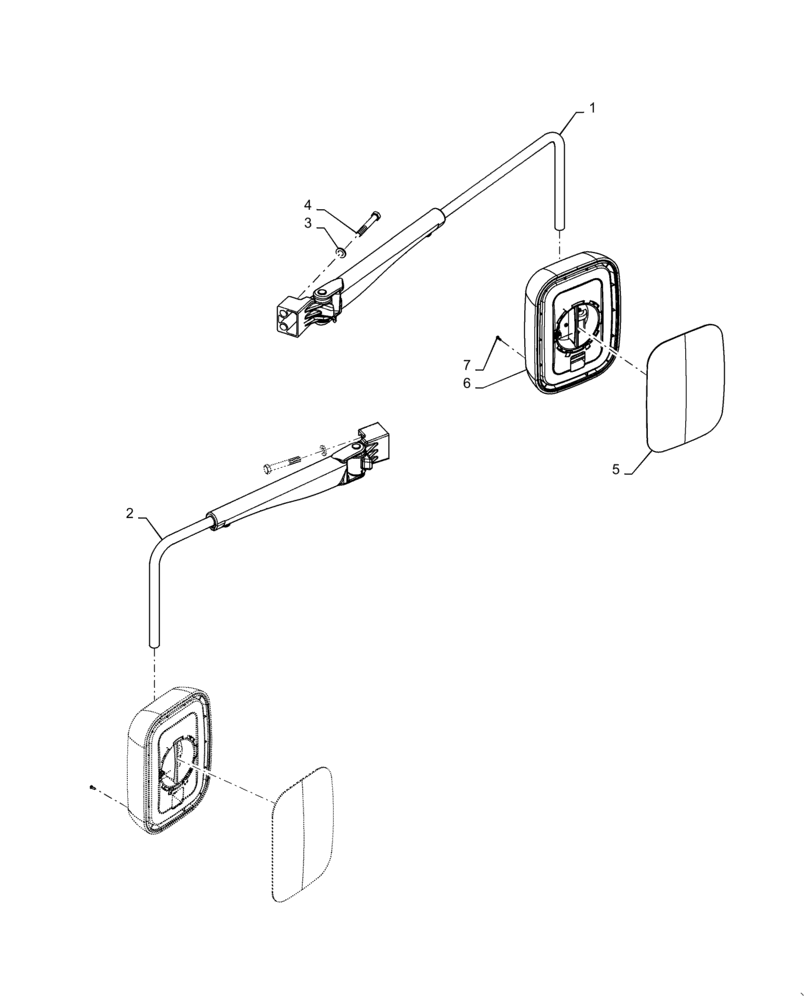

Схема запчастей Case IH PATRIOT 4440 - (90.118.BM[03]) - ELECTRIC MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
6
1
3
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87686673

ARM

Mirror, RH, Electric

1шт.

2

87703119

ARM

Mirror, LH, Electric

1шт.

3

896-19012

WASHER,M12 x 24.5 x 3, HT

4шт.

4

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

87363066

MIRROR,238mm x 328mm

Electric

2шт.

6

87674626

COVER

Mirror Backing

1шт.

7

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

Rear Cover Screws

4шт.

8

82037339

SWITCH ASSY

Located in Cab, Not Shown

1шт.

Выбрано товаров: 8
