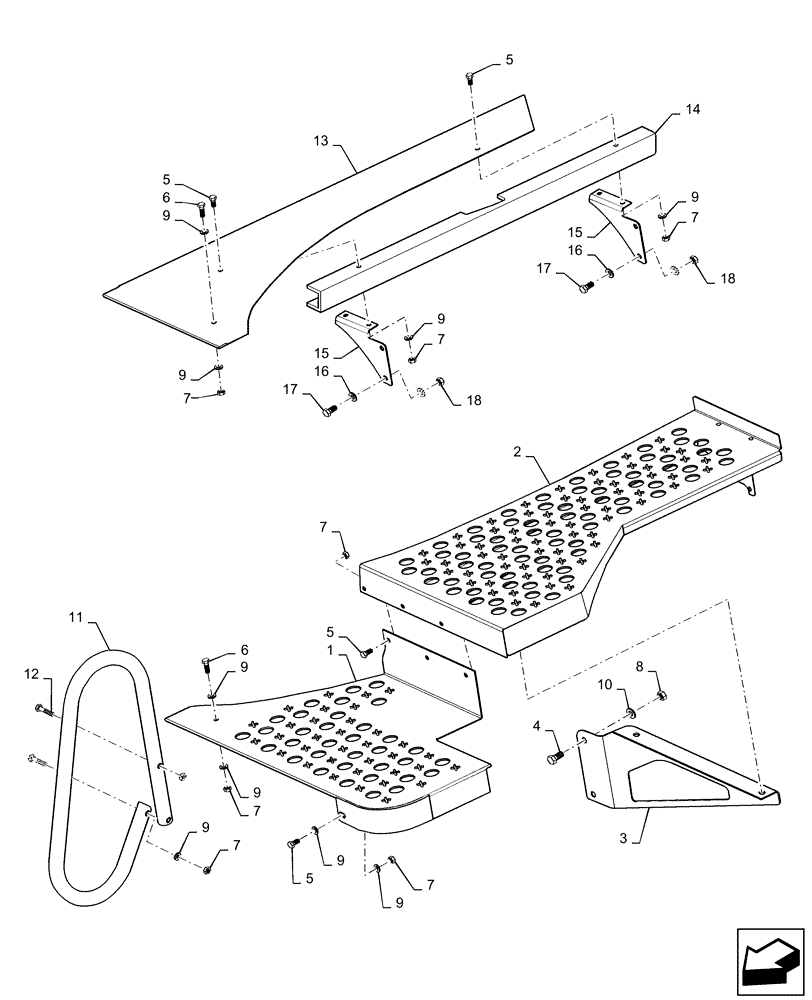

Запчасти Case IH PATRIOT 4440 (90.118.AX[02]) - FRONT HANDRAIL, AND PLATFORM, BSN YGT044001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84418990

WALKWAY

Walkway, Front, LH

1шт.

2

342016A1

EXTENSION

Walkway, Front, Upper

1шт.

3

87474250

SUPPORT

Front Walkway

1шт.

4

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

13шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

20шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

23шт.

10

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

11

84128609

HANDRAIL

Front Ladder

1шт.

12

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

13

84418969

WALKWAY

Walkway, RH

1шт.

14

BN322796

CHANNEL

Walkway Support

1шт.

15

BN322795

BRACKET

Walkway Support

2шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

17

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

18

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.
