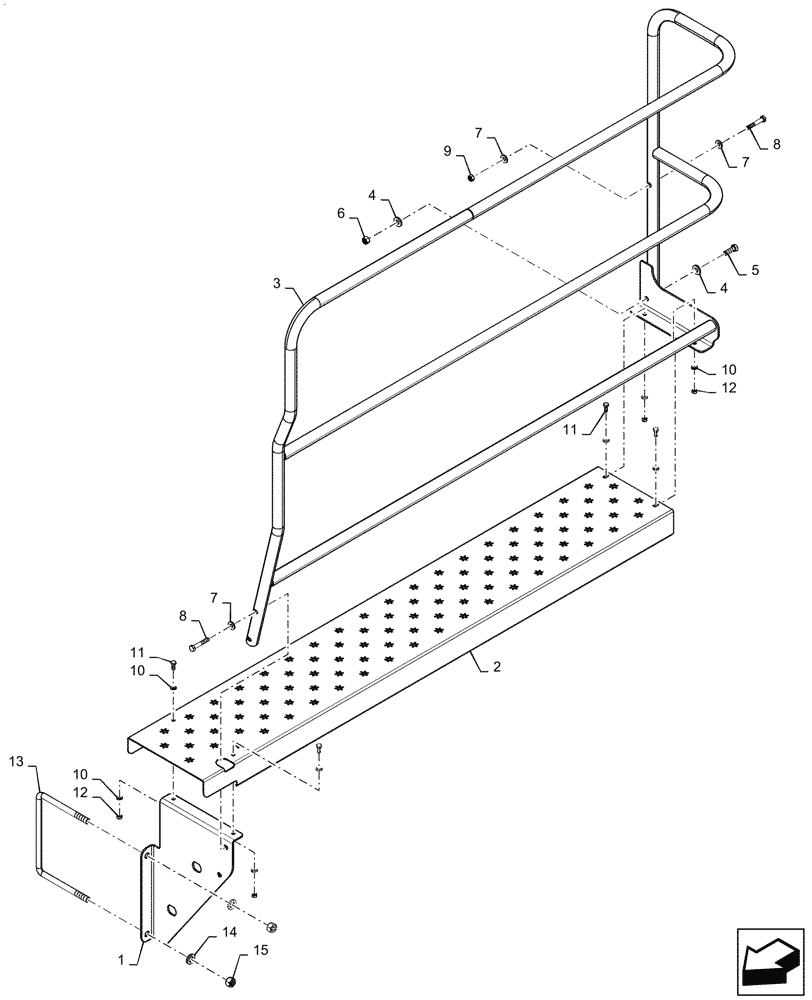

Запчасти Case IH PATRIOT 4440 (90.118.AX[01.1]) - REAR HANDRAIL, AND PLATFORM, ASN YGT 044000 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84286180

MOUNT

Rear Walkway

1шт.

2

47968762

WALKWAY

Rear

1шт.

3

47968765

HANDRAIL

Rear

1шт.

4

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

5

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

1шт.

6

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

8

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

11

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

13

BN325918

U-BOLT

M16 x 256mm ID x 187mm IL

1шт.

14

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

15

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.
