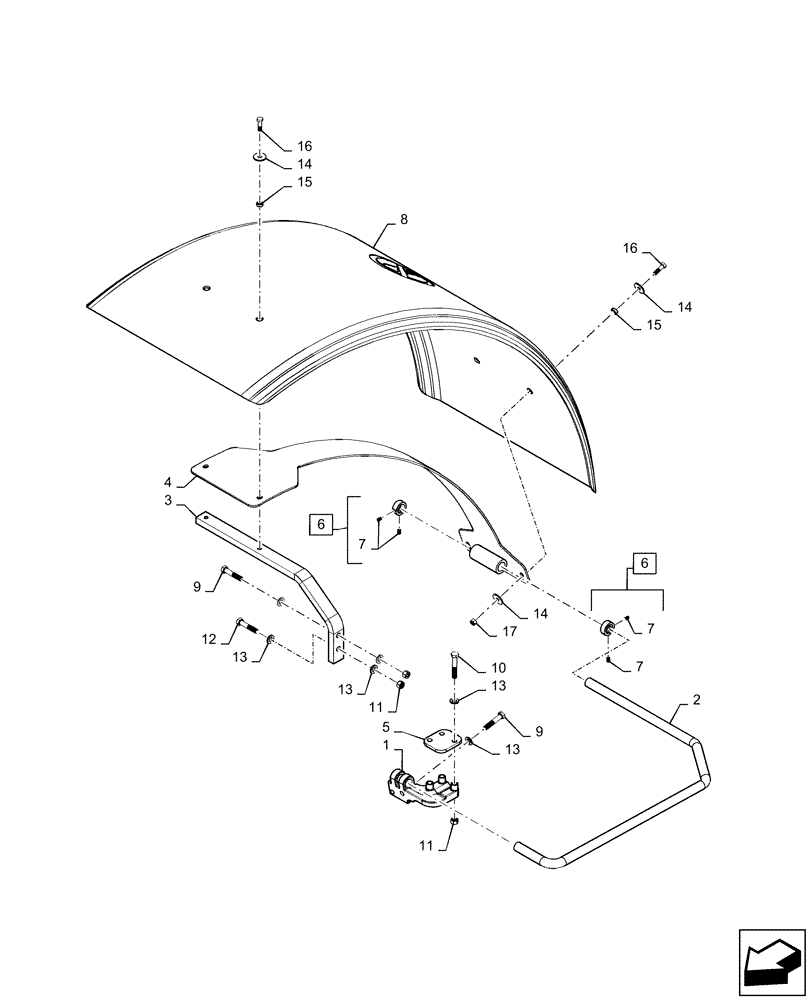

Запчасти Case IH PATRIOT 4440 (90.116.AC[04]) - WIDE FENDER, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84542684

MOUNT

RH Fender

1шт.

2

84542680

ROD

Fender Spring

1шт.

3

84484472

MOUNT

Fender Bar

1шт.

4

84542697

SUPPORT

Plate

1шт.

5

84542701

PLATE

Rod Cover

1шт.

6

84542715

COLLAR

Rod Locking, Incl 7

2шт.

7

80442

SET SCREW,5/16" - 18 x 1/2"

4шт.

8

84484468

FENDER

Long, Holes

1шт.

9

84539439

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60, CL 10.9, DOR

3шт.

10

84543604

BOLT,Hex, M12 x 70mm, Cl 10.9

M12 x 70, CL 10.9, DOR

3шт.

10

87344210

NUT

M12, DOR

5шт.

11

87344210

NUT

M12, DOR

5шт.

12

87020803

BOLT,Hex, M12 x 50, 10.9

1шт.

13

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

7шт.

14

BN325184

WASHER

Stainless Steel

6шт.

15

47379191

SPACER

Stainless, Fender Bolt

4шт.

16

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.
