(90.108.AC[05]) - APPLICATION DECAL GROUP

Запчасти Case IH PATRIOT 4440 (90.108.AC[05]) - APPLICATION DECAL GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

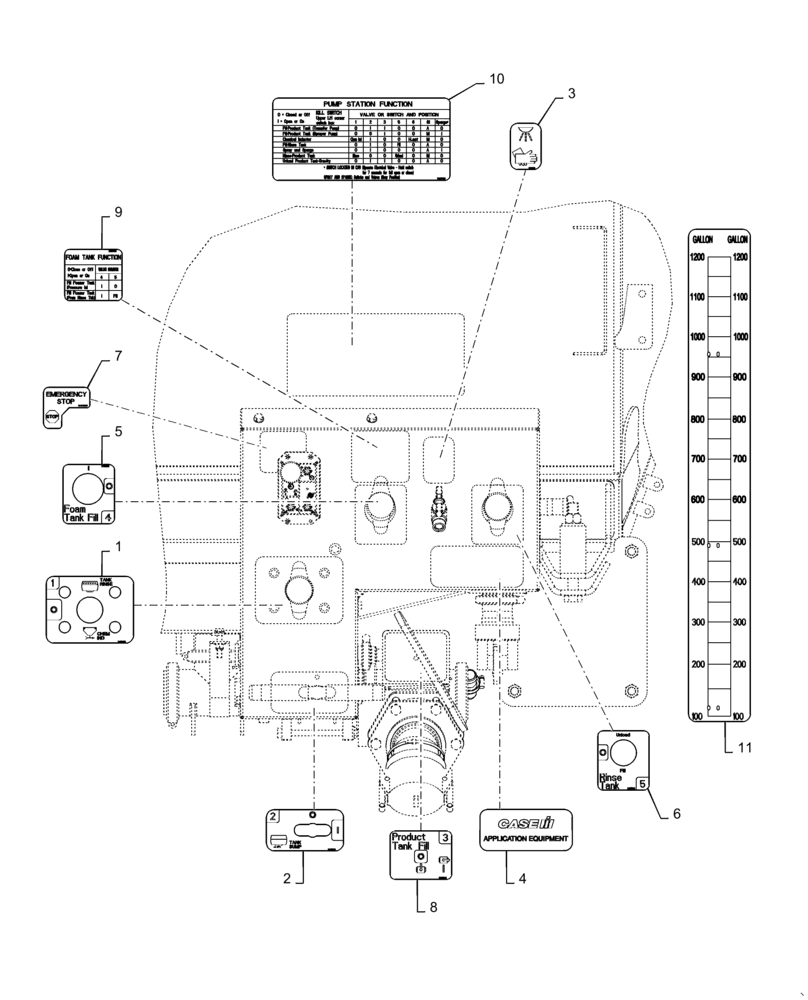

Схема запчастей Case IH PATRIOT 4440 - (90.108.AC[05]) - APPLICATION DECAL GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
7
4
2
3
9
11
5
10
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

343182A1

DECAL

Pump Sation 778D

1шт.

2

343183A1

DECAL

Tank Sump 778D

1шт.

3

BN323729

DECAL

Hand Wash

1шт.

4

87653647

DECAL

Case Application Equipment

1шт.

5

343185A1

DECAL

Foam Tank fill 778D

1шт.

6

343186A1

DECAL

Rinse Tank 778D

1шт.

7

344405A1

DECAL

Emergency Stop

1шт.

8

343184A1

DECAL

Product Tank Fill 778D

1шт.

9

343189A1

DECAL

Foamer Function 778D

1шт.

10

47937223

DECAL

Station Function 778D

1шт.

11

87266004

DECAL

Sight Gauge, Gallons

1шт.
