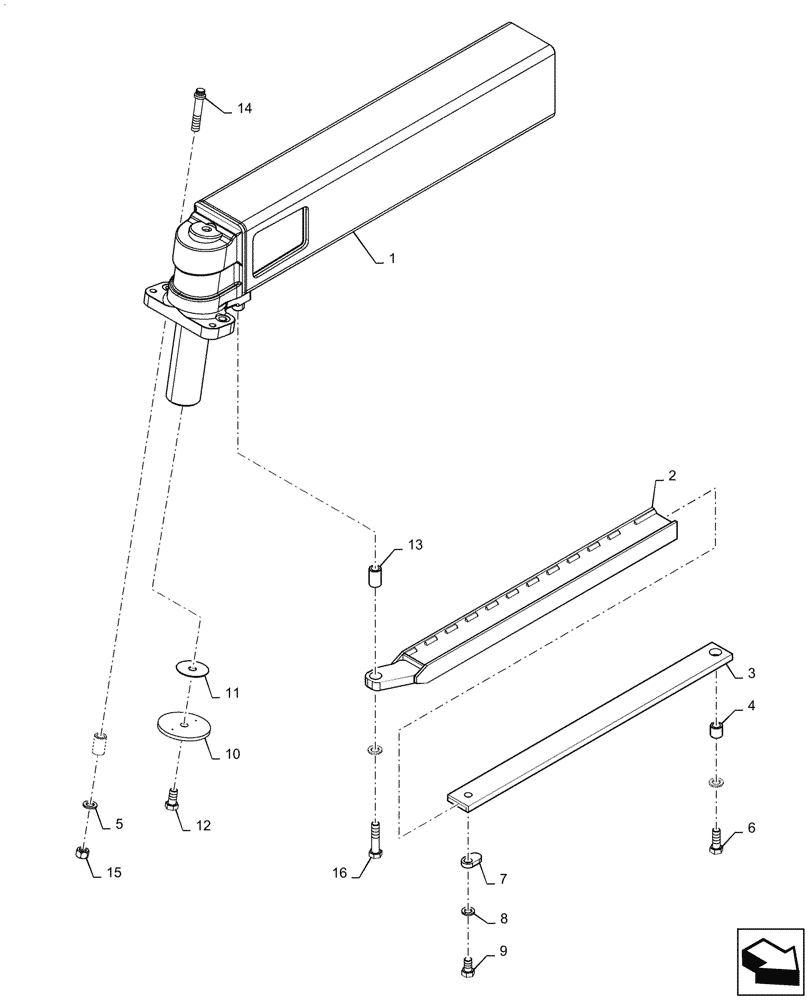

Запчасти Case IH PATRIOT 4440 (27.100.AO[02.1]) - REAR AXLE ASSY, RH ASN YGT044000 (27) - REAR AXLE SYSTEM

1

87721678

AXLE

Right Rear

1шт.

2

87268927

SLIDE

Axle Adjust, Right Rear

1шт.

3

87540210

SLIDE

Bar Axle

1шт.

4

BN301998

DOWEL

Hollow

1шт.

5

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

6

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

7

BN320759

STOP

Axle Adjust Slide

1шт.

8

86642462

LOCK WASHER,M20

1шт.

9

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

1шт.

10

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

11

BN312604

SPACER

Shim - Axle

1шт.

12

87342019

BOLT,Hex, M20 x 2.5 x 40mm, Class 10.9, Full Thd, DOR

1шт.

13

342939A1

SLEEVE

Dowel, Hollow

2шт.

14

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

2шт.

15

87024336

NUT,M20 x 2.5, Cl 10

2шт.

16

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.
