Запчасти Case IH PATRIOT 4440 (90.100.AU[04]) - HOOD TOP, ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

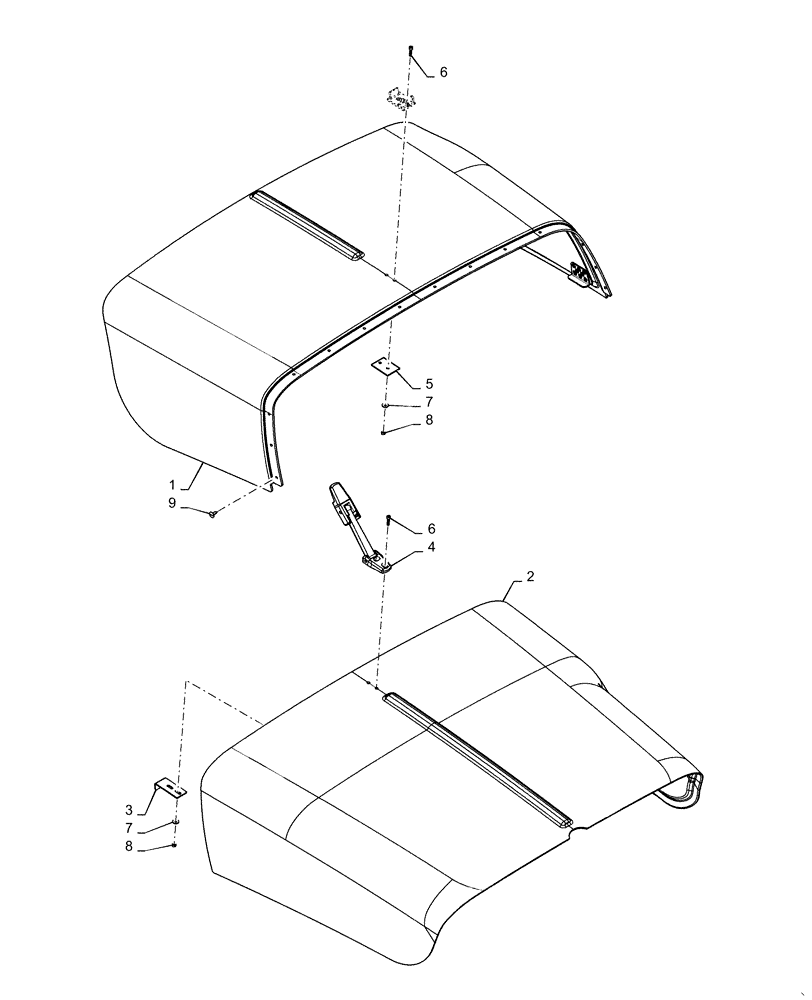

![Схема запчастей Case IH PATRIOT 4440 - (90.100.AU[04]) - HOOD TOP, ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/5248584.png)
6
2
8
4
7
3
9
8
6
1
5
7
№
Артикул
Название
Примечание
Количество
1
47403785
HOOD
Access Cover, Front, Serial Range: -YGT044000
1шт.
1
48027294
HOOD
Access Cover, Front, Start Serial: YGT044001
1шт.
2
47403790
HOOD
Access Cover, Rear, Serial Range: -YGT044000
1шт.
2
48027294
HOOD
Access Cover, Rear, Start Serial: YGT044001
1шт.
3
84373390
SUPPORT
Top Hood Latch
1шт.
4
BN310732
LATCH
Hood
1шт.
5
BN315616
LATCH
Mount, Hood Top
1шт.
6
87343627
SCREW
M6 x 25mm, H - SOC 8.8
4шт.
7
87529302
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
4шт.
8
86980513
NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR
4шт.
9
87268898
RIVET
Nylon, Black, 1/4"
14шт.
Выбрано товаров: 11
