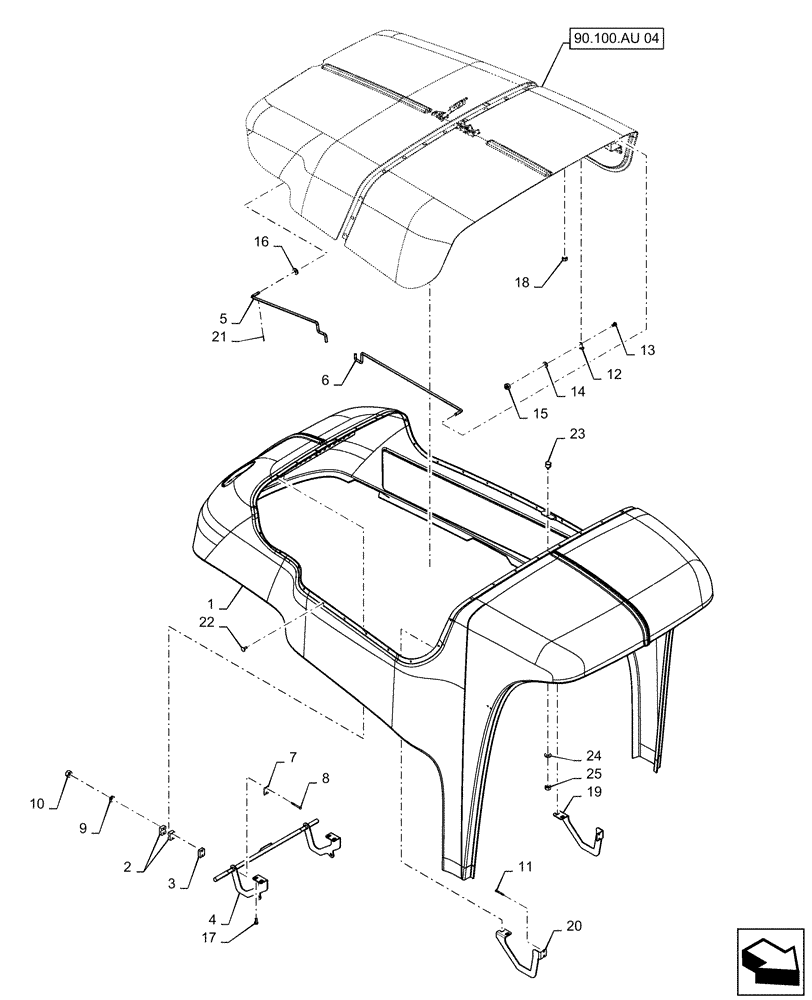

Запчасти Case IH PATRIOT 4440 (90.100.AU[03]) - REAR HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47403842

HOOD

Rear Engine

1шт.

2

BN315164

CLAMP

Single Pair, 5/8"

4шт.

3

47426667

SPACER

Clamp, HInge

2шт.

4

47373796

LINKAGE

Rear Hood

1шт.

5

47648535

ROD

Prop, Rear Access Cover

1шт.

6

47713824

ROD

Prop, Front Access Cover

1шт.

7

BN309485

PLATE

Top, Single, Size 2

4шт.

8

86980367

BOLT,Hex, M6 x 60mm, Cl 8.8

M6 x 60mm, Class 8.8

4шт.

9

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

10

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

11

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 x 50mm, Class 8.8

4шт.

12

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

13

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

14

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

17

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

18

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

19

47460518

MOUNTING PLATE

Front Hood Link, LH

1шт.

20

47460517

MOUNTING PLATE

Front Hood Link, RH

1шт.

21

733-2520

COTTER PIN,M2.5 x 20

2шт.

22

87268898

RIVET

Black, Nylon, 1/4" x .80"

38шт.

23

BN310002

BUMPER

1" OD x 1" H, Serial Range: -YGT044000

2шт.

23

47736549

BUMPER

Rubber, Adjustable, Start Serial: YGT044001

2шт.

24

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

, Serial Range: -YGT044000

4шт.

25

BN55361

NUT,5/16"-18, Nylon, Stainless

, Serial Range: -YGT044000

4шт.

25

86521605

FLANGE NUT,5/16"-18, Cl 5

, Start Serial: YGT044001

4шт.
