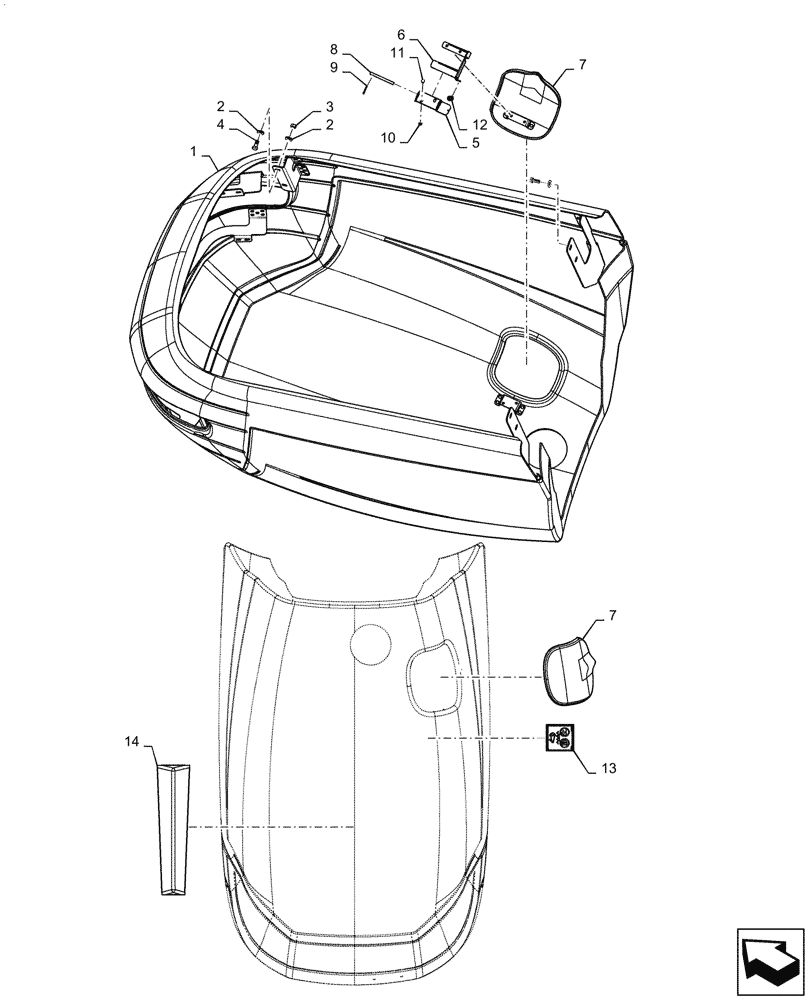

Запчасти Case IH PATRIOT 4440 (90.100.AU[01]) - FRONT HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47404228

HOOD

Front, Serial Range: -YGT044000

1шт.

1

48027260

HOOD

Front, Start Serial: YGT044001

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

5

47958310

MOUNT

Def Cover Hinge

1шт.

6

47958309

MOUNT

Def Cover Hinge

1шт.

7

47404398

COVER ASSY

Def Access, Serial Range: -YGT044000

1шт.

7

48045515

COVER

Def Access, Start Serial: YGT044001

1шт.

8

84407301

PIN

Def Fill Cover

1шт.

9

733-2520

COTTER PIN,M2.5 x 20

2шт.

10

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

11

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

4шт.

12

87283313

SPRING

Extension, Spreader Lock Handle

1шт.

13

84284896

DECAL,DEF TANK identification label

DEF

1шт.

14

1968108C2

TRIM

Hood Sight

1шт.
