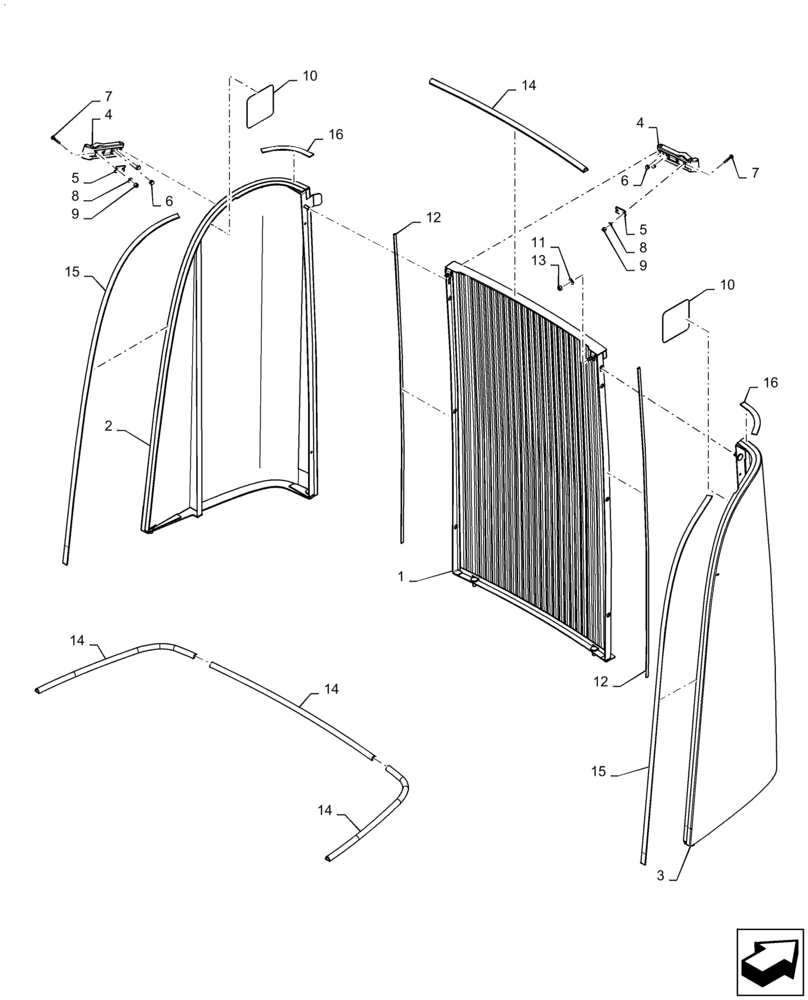

Запчасти Case IH PATRIOT 4440 (90.100.AF) - ENGINE HOOD, GRILLE ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47503577

SCREEN

Center

1шт.

2

47503578

SCREEN

LH

1шт.

3

47503579

SCREEN

RH

1шт.

4

BN307683

LATCH

Soft

4шт.

5

84526712

SPACER

Latch

4шт.

6

87017053

RIVET,Pop, .146" x .425"

12шт.

7

84527306

SCREW,Phillips Drive, Pan HD, M4 x 25mm, Cl 5.8

M4 x 25, DOR

4шт.

8

87529300

WASHER,4.4mm ID x 9mm OD x 0.8mm Thk

4.4 x 9 x 0.8mm, DOR

4шт.

9

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

4шт.

10

87711494

DECAL

Cover

2шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

12

47357124

RUBBER SEAL

Foam

2шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

14

87495710

RUBBER SEAL

Bulk, Cut To Length Required

1шт.

15

47884733

RUBBER SEAL

Flat

2шт.

16

47884602

RUBBER SEAL

Flat, Grille, LH

2шт.
