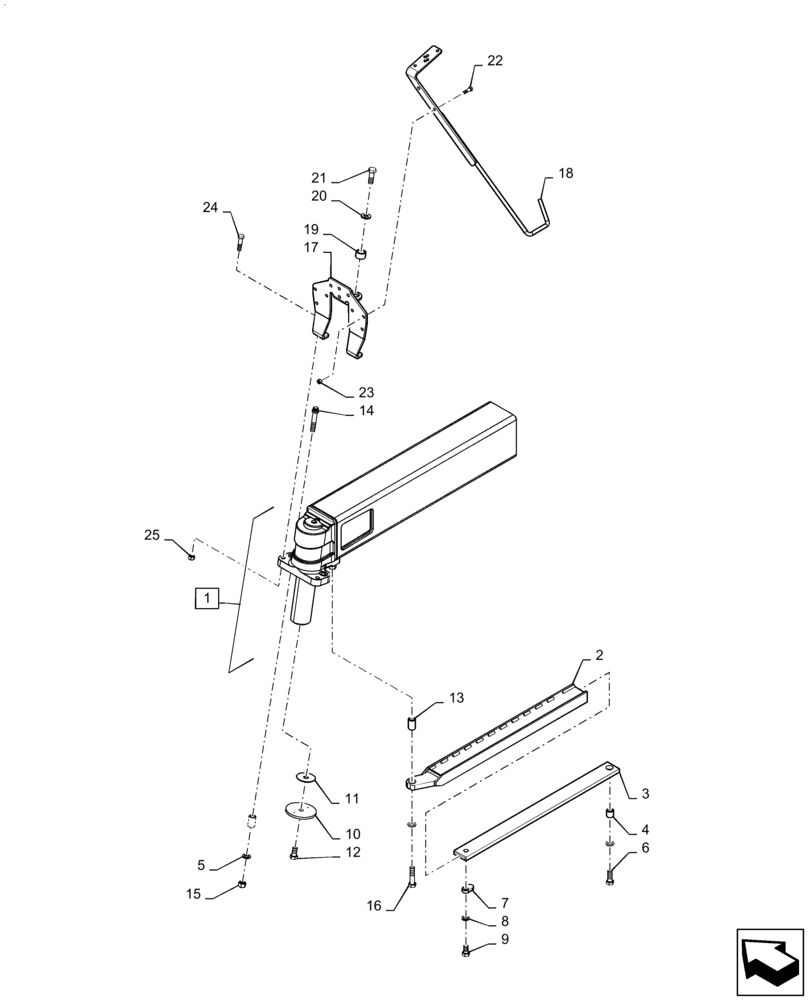

Запчасти Case IH PATRIOT 4440 (27.100.AO[02]) - REAR AXLE ASSY, RH, BSN YGT044001 (27) - REAR AXLE SYSTEM

1

87721678

AXLE

Right Rear

1шт.

2

87268927

SLIDE

Axle Adjust, Right Rear

1шт.

3

87540210

SLIDE

Bar Axle

1шт.

4

BN301998

DOWEL

Hollow

1шт.

5

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22mm x 37mm x 4mm, DOR

6шт.

6

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

7

BN320759

STOP

Axle Adjust Slide

1шт.

8

86642462

LOCK WASHER,M20

1шт.

9

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

M20 x 35mm, Full Class 10.9, DOR

1шт.

10

BN302052

WASHER,20.32mm ID x 139.7mm OD

.38mm, 1.79mm

1шт.

11

BN312604

SPACER

Shim - Axle

1шт.

12

87342019

BOLT,Hex, M20 x 2.5 x 40mm, Class 10.9, Full Thd, DOR

1шт.

13

342939A1

SLEEVE

Dowel, Hollow

2шт.

14

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20 - 2.5 x100mm, 12 PT

2шт.

15

87024336

NUT,M20 x 2.5, Cl 10

2шт.

16

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.

17

87266807

MOUNTING PLATE

Hose Pivot

1шт.

18

87615326

STOP DEVICE

Hoses, Right Hand

1шт.

19

87390349

BUSHING

Hose Pivot

1шт.

20

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22mm x 44mm x 5mm, DOR

1шт.

21

86980460

BOLT,Hex, M20 x 60mm, Cl 8.8

M20 x 60mm, Class 8.8, DOR

1шт.

22

87341829

BOLT,Hex, M16 x 65mm, Cl 8.8

M16 x 65mm, Class 8.8, DOR

2шт.

23

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

24

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

25

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.
