(88.100.AN[01]) - SLOW MOVING VEHICLE EMBLEM, AND MOUNTING PARTS

Запчасти Case IH PATRIOT 4440 (88.100.AN[01]) - SLOW MOVING VEHICLE EMBLEM, AND MOUNTING PARTS (88) - ACCESSORIES

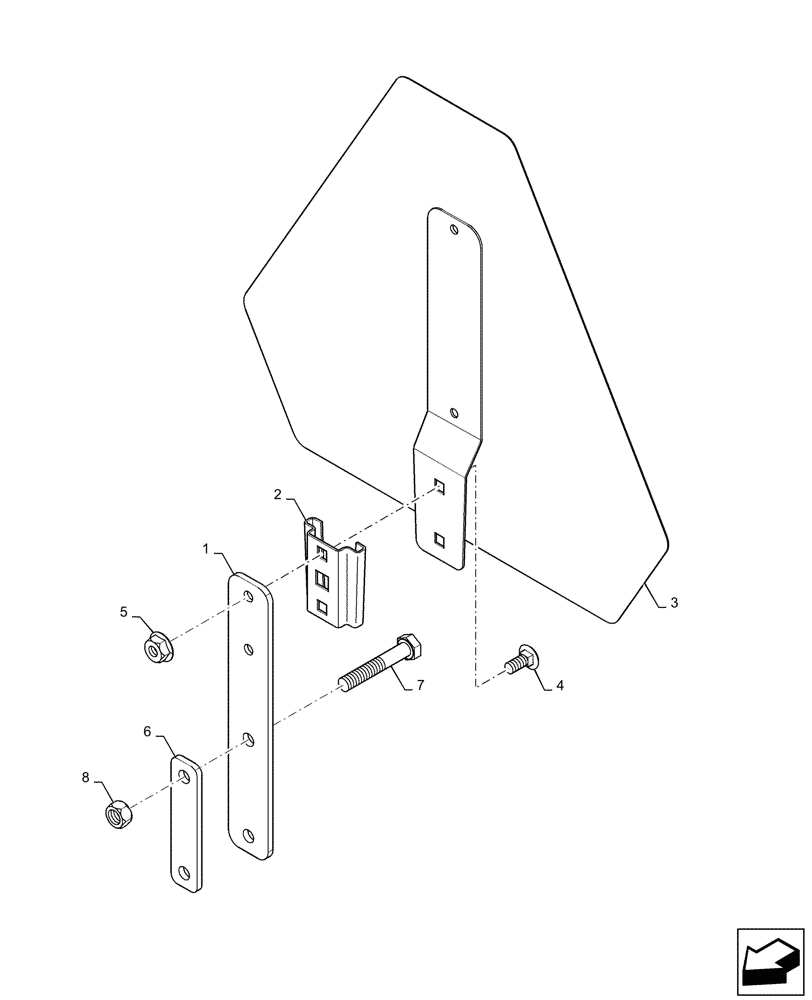

Схема запчастей Case IH PATRIOT 4440 - (88.100.AN[01]) - SLOW MOVING VEHICLE EMBLEM, AND MOUNTING PARTS (88) - ACCESSORIES
6
1
4
8
7
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87618518

MOUNT

SMV

1шт.

2

A59457

BRACKET

SMV

1шт.

3

A59450

WARNING SIGN

Emblem

1шт.

4

BN50222

BOLT

5/16" - 18 x 3/4", SS, PH

2шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

6

84203615

MOUNT

SMV

1шт.

7

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
