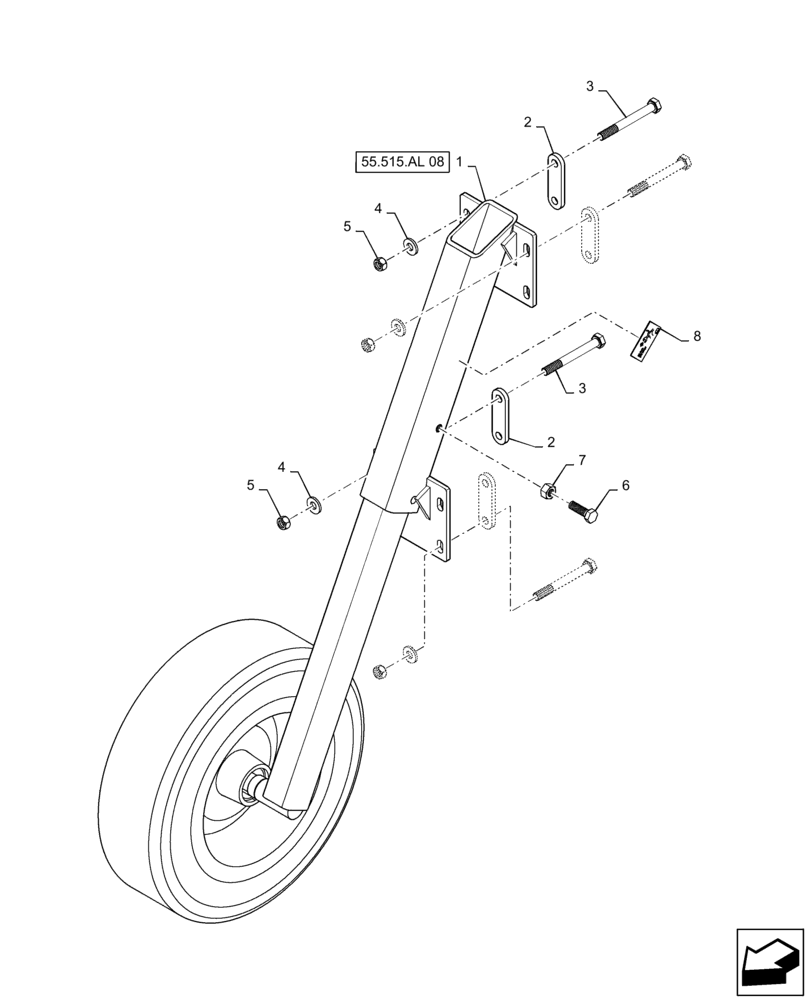

Запчасти Case IH PATRIOT 4440 (88.100.AA[04]) - AUTOBOOM WHEELS ASSY, 120’ BOOM, STRAIGHT BOLTS (88) - ACCESSORIES

1

87629616

KIT

Autoboom, Wheels 120'

1шт.

See Fig 55.515.13 For Service Parts Breakdown

1шт.

2

BN308039

PLATE

Spacer

8шт.

3

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

16шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

6

87310191

BOLT,1/2"-13 x 1-1/2", G5, DOR

4шт.

7

87343666

NUT

Hex, 1/2"-13, G5

4шт.

8

84532318

DECAL

Torque

2шт.
