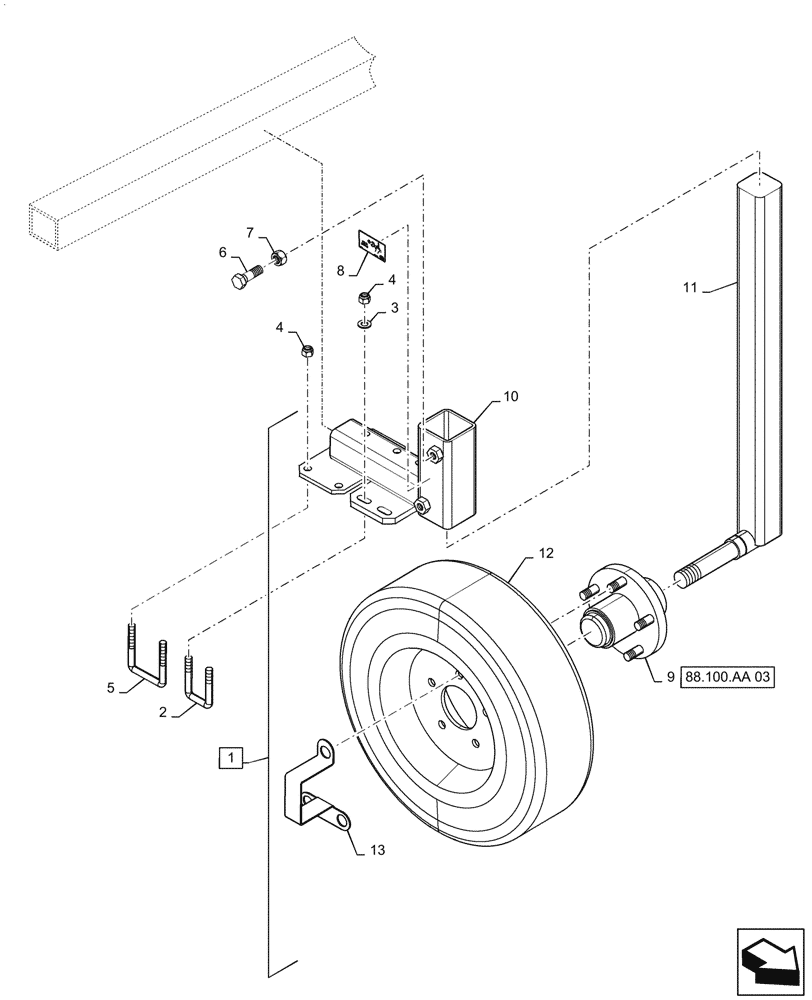

Запчасти Case IH PATRIOT 4440 (88.100.AA[02]) - AUTOBOOM WHEEL ASSY, 90/100 BOOMS (88) - ACCESSORIES

1

87487173

KIT

Autoboom Wheel, 90/100, Incl 9 - 13

1шт.

Complete LH and RH Wheel Assemblies, Less Mounting Hardware

1шт.

2

BN67284

U-BOLT

3/8 -16, Square Bend, 1 1/4" ID x 2 3/4" Long

4шт.

3

BN50146

WASHER,3/8", Stainless

8шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

5

BN319919

U-BOLT

3/8 -16, Square Bend, 2" ID x 2 3/4" Long

4шт.

6

87310191

BOLT,1/2"-13 x 1-1/2", G5, DOR

4шт.

7

87343666

NUT

Hex, 1/2"-13, G5

4шт.

8

84532318

DECAL

Torque

2шт.

9

87711682

HUB

Complete, 5 Bolt

2шт.

See 88.100.AA 03 For Service

1шт.

10

84132941

BRACKET

LH Mounting Bracket

1шт.

10

84132942

BRACKET

RH Mounting Bracket

1шт.

11

87719426

BRACKET, SUPPORTING

Axle, Adjustable Mounting, 24" Straight

2шт.

12

87719425

TYRE/TIRE

Smooth, 4.80 x 8", No Flat, With Rim

2шт.

13

87720308

BRACKET, SUPPORTING

Hub Retainer

2шт.
