(27.100.AO[01.2]) - REAR AXLE, LH, HOSE MOUNTING PARTS, ASN YGT044000

Запчасти Case IH PATRIOT 4440 (27.100.AO[01.2]) - REAR AXLE, LH, HOSE MOUNTING PARTS, ASN YGT044000 (27) - REAR AXLE SYSTEM

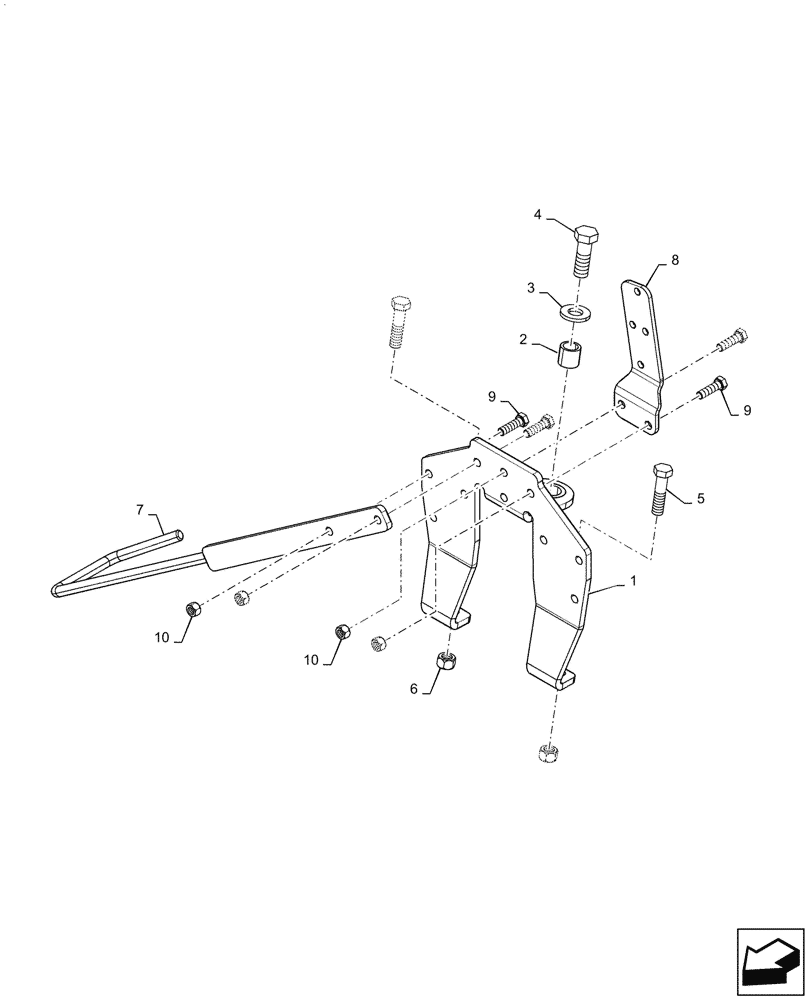

Схема запчастей Case IH PATRIOT 4440 - (27.100.AO[01.2]) - REAR AXLE, LH, HOSE MOUNTING PARTS, ASN YGT044000 (27) - REAR AXLE SYSTEM
10
7
1
9
5
2
4
8
3
10
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266807

MOUNTING PLATE

Hose Pivot

1шт.

2

87390349

BUSHING

Hose Pivot

1шт.

3

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

1шт.

4

86980460

BOLT,Hex, M20 x 60mm, Cl 8.8

1шт.

5

87341829

BOLT,Hex, M16 x 65mm, Cl 8.8

2шт.

6

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

7

BN325088

STOP

Hose

1шт.

8

47969137

MOUNTING PLATE

Upper

1шт.

9

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

10

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.
