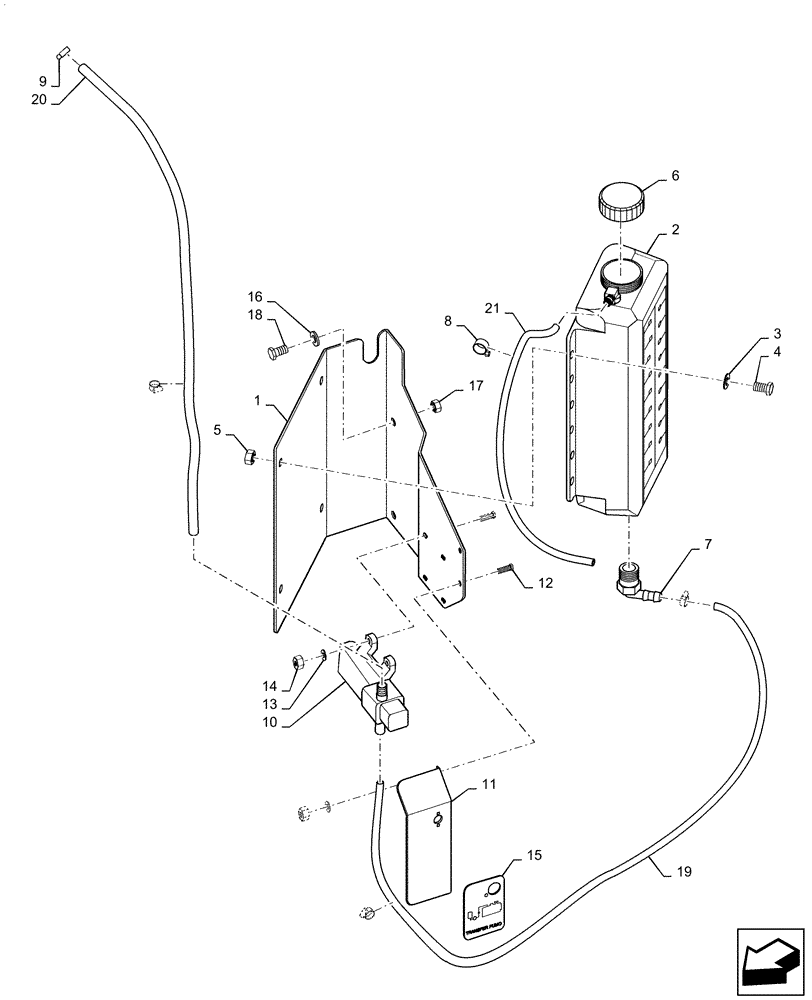

Запчасти Case IH PATRIOT 4440 (78.120.AE[01]) - FOAM MARKER CONCENTRATE TANK AND TRANSFER PUMP (78) - SPRAYING

1

87271981

MOUNTING PLATE

Foamer Concentrate Tank And Transfer Pump

1шт.

2

84532275

RESERVOIR

6 Quarts, Poly, Foam Concentrate Tank

1шт.

3

BN50142

WASHER,5/16", Stainless Steel

4шт.

4

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

5

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

6

86507190

CAP

Coolant Recovery Bottle

1шт.

7

BN325981

ELBOW

1/2" MPT x 3/8" Hose Barb, Poly

1шт.

8

BN310450

HOSE CLAMP

#3, Stainless Steel

1шт.

9

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

4шт.

10

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

11

87271978

PANEL

Switch, Transfer Pump

1шт.

12

BN311631

BOLT,#10 - 24 x 3/4", SST

10 - 24 x .75", BSH, Stainless Steel

6шт.

13

BN310265

WASHER

10, Stainless Steel

6шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

6шт.

15

87271976

DECAL

Transfer Pump

1шт.

16

BN50146

WASHER,3/8", Stainless

3шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

18

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

3шт.

19

87266748

HOSE

3/8" x 10.5" Clear, Hose From Concentrate Tank To Transfer Pump

1шт.

20

86986177

HOSE,0.38" ID x 100.00"

Clear, Runs From Transfer Pump To Top Port On Foam Tank

1шт.

21

BN324759

HOSE,0.25" ID x 17.00"

EPDM, Concentrate Tank Overflow Line

1шт.
