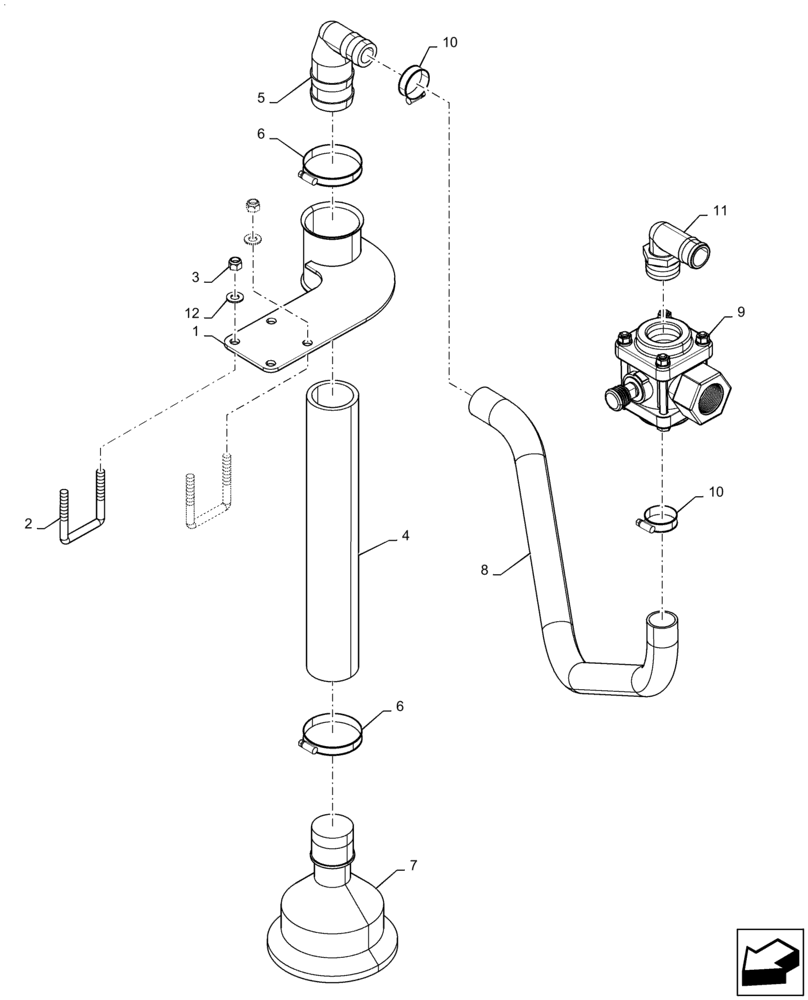

Запчасти Case IH PATRIOT 4440 (78.120.AD[11]) - FOAM MARKER DUAL DROP, LH (78) - SPRAYING

1

BN313193

MOUNTING PARTS

Inner Boom Foam Drop Bracket

1шт.

2

47650282

U-BOLT

2.06" ID x 2 - 3/4" x 3/8"

2шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

4

87266611

HOSE

Foam Drop, 2" x 16"

1шт.

5

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1 - 1/4" Hose Barb

1шт.

6

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

7

BN2403252

BELL

Foam Marker

1шт.

8

BN322089

HOSE,1.25" ID x 32.00"

Type K

1шт.

9

BN311011

VALVE,1-1/4" NPT Female; Full Port

3 - Way, 1 - 1/4" NPT

1шт.

10

BN310447

HOSE CLAMP

#20, SST

2шт.

11

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1 - 1/4" NPT x 1 - 1/4" Hose Barb, 90°

1шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

DOR

4шт.
