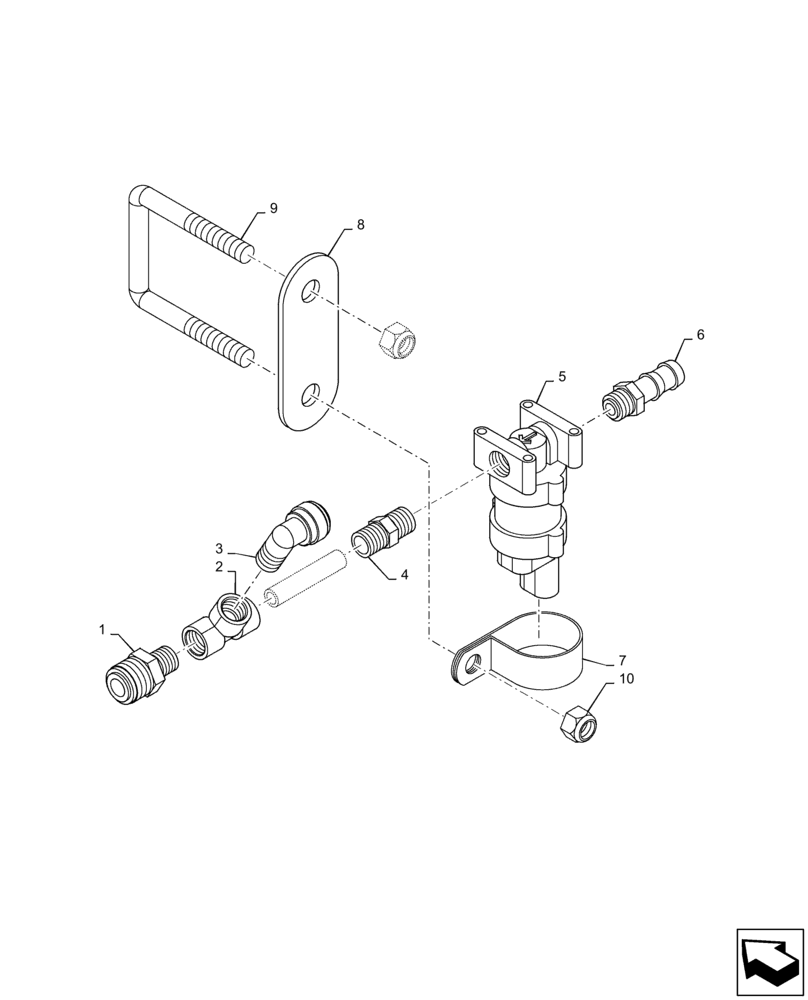

Запчасти Case IH PATRIOT 4440 (78.120.AD[07]) - FOAM MARKER VENTURI, SOLENOID ASSY, LH (78) - SPRAYING

1

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

2

86986807

TEE

1/4" NPT, Poly

1шт.

3

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

4

87269827

VENTURI

Foamer Assembly, Poly

1шт.

5

BN307938

VALVE

Solenoid, 1/4" NPT

1шт.

6

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.

7

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

8

87272755

SPACER

3mm x 38mm x 100mm, Poly

1шт.

9

BN319919

U-BOLT

2.06" ID x 2 - 3/4" x 3/8"

1шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.
