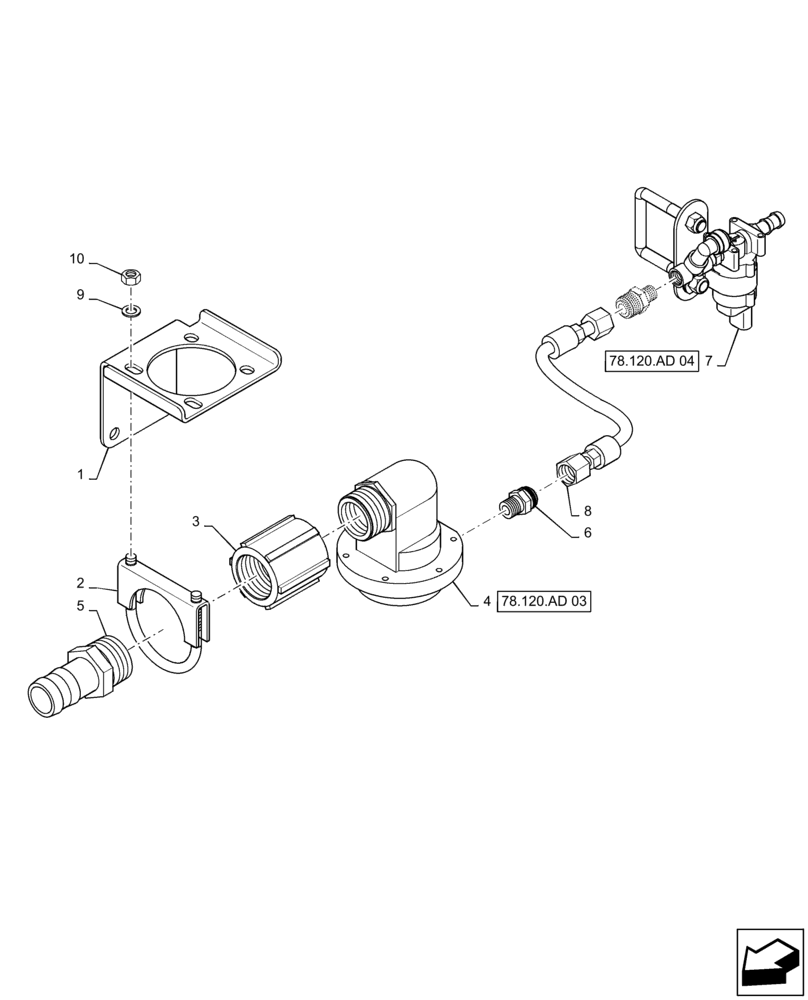

Запчасти Case IH PATRIOT 4440 (78.120.AD[04]) - FOAM MARKER CHAMBER GROUP, LH (78) - SPRAYING

1

87266740

PLATE

Foamer Chamber

1шт.

2

BN21276

CLAMP

2 - 1/2"

2шт.

3

BN305269

COUPLING

1 - 1/4" NPT, Poly

3шт.

4

BN307636

CHAMBER

Foam Mixing

4шт.

See Fig 78.120.AD 03 For Service Parts

1шт.

5

BN73660

PIPE FITTING,1-1/4" NPT Male x 1-1/4" Barbed

1 - 1/4" NPT X 1 - 1/4" Hose Barb, Poly

5шт.

6

BN2399412

ADAPTER

3/8" MPT x 3/8" OD Tube, Push Lock Fitting

6шт.

7

87666448

VENTURI

Solenoid Assembly, LH

7шт.

See Fig 78.120.AD 04 For Service Parts

1шт.

8

BN2292088

AIR INTAKE TUBE

Air, Synflex 3/8" Black, Bulk, Cut To Lenght Of 15"

1шт.

9

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

9шт.

10

87343970

NUT,3/8"-16, G8, DOR

10шт.
