(78.120.AD[03]) - FOAM MARKER MIXING CHAMBER ASSEMBLY, LH

Запчасти Case IH PATRIOT 4440 (78.120.AD[03]) - FOAM MARKER MIXING CHAMBER ASSEMBLY, LH (78) - SPRAYING

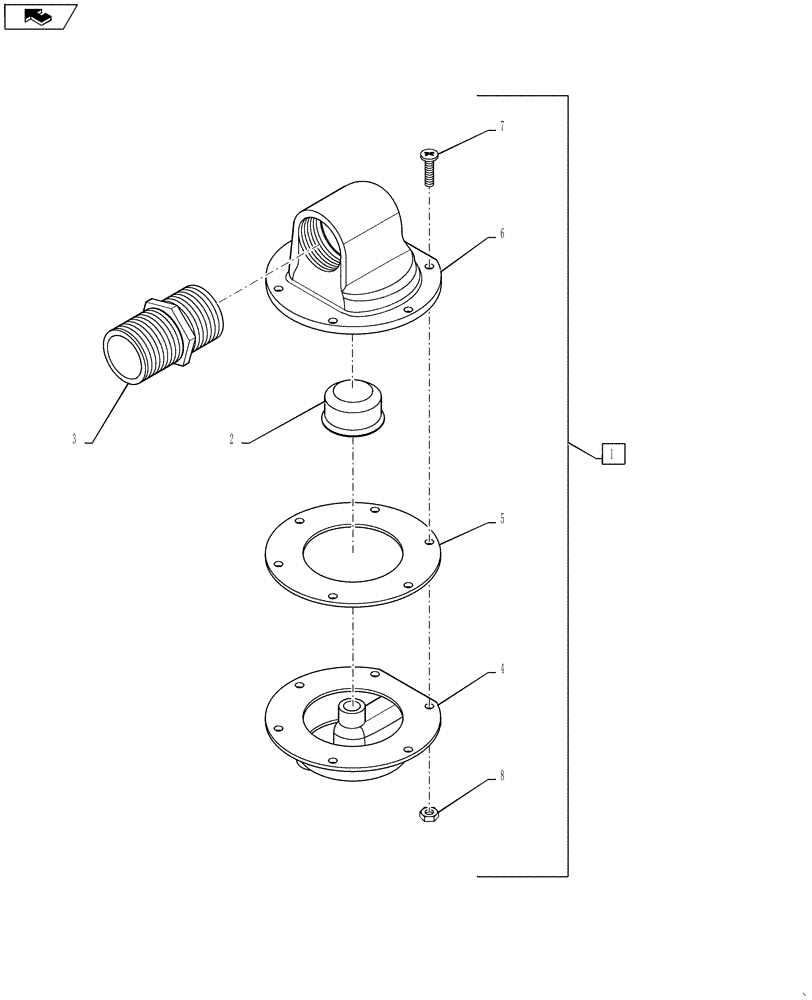

Схема запчастей Case IH PATRIOT 4440 - (78.120.AD[03]) - FOAM MARKER MIXING CHAMBER ASSEMBLY, LH (78) - SPRAYING
3
1
8
5
home
2
7
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307636

CHAMBER

Foam Mixing, Assembly

1шт.

2

21965

SCREEN

Foam Head, 3/8" Screen Strainer

1шт.

3

BN313211

NIPPLE

Hex, 1 - 1/4"

1шт.

4

21964

HOUSING

Base, Foam Mixing Chamber

1шт.

5

21966

GASKET

Foam Mixing Chamber

1шт.

6

21967

HOUSING

Top, Foam Mixing Chamber

1шт.

7

NSS

NOT SOLD SEPARAT

10 - 24 x 7/8", Stainless Steel Screw

6шт.

8

NSS

NOT SOLD SEPARAT

10 - 24, Stainless Steel, Nyloc Nut

6шт.

Выбрано товаров: 8
