(78.120.AC[01]) - FOAM MARKER, AIR LINE, TANK TO CAC TUBE, BSN YGT044001

Запчасти Case IH PATRIOT 4440 (78.120.AC[01]) - FOAM MARKER, AIR LINE, TANK TO CAC TUBE, BSN YGT044001 (78) - SPRAYING

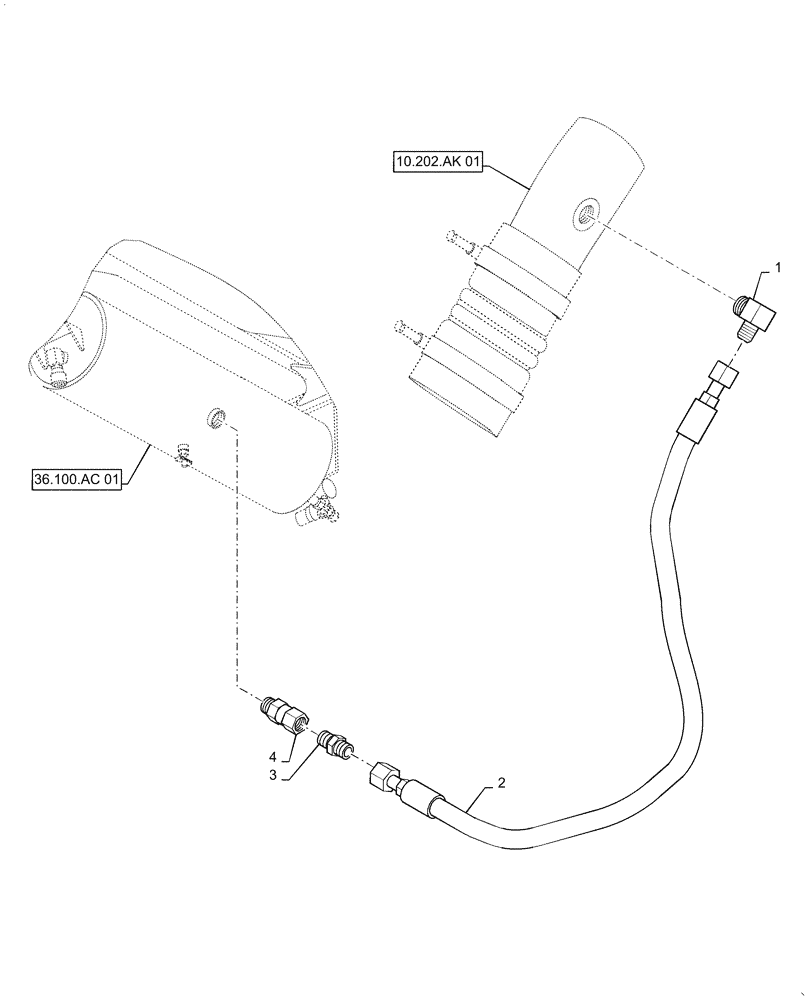

Схема запчастей Case IH PATRIOT 4440 - (78.120.AC[01]) - FOAM MARKER, AIR LINE, TANK TO CAC TUBE, BSN YGT044001 (78) - SPRAYING
2
1
10.202.ak 01
36.100.ac 01
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2390664

FITTING

2024 12 10

1шт.

2

84308139

HOSE

-8 x 2082mm, Air Tank Charge Line

1шт.

3

BN316060

FITTING

1/2" NPT x 7/8" JIC

1шт.

4

BN2295247

CHECK VALVE

Air

1шт.

Выбрано товаров: 4
