(78.111.AE[04]) - FLOWMETER PLUMBING, HIGH FLOW, RFM 200

Запчасти Case IH PATRIOT 4440 (78.111.AE[04]) - FLOWMETER PLUMBING, HIGH FLOW, RFM 200 (78) - SPRAYING

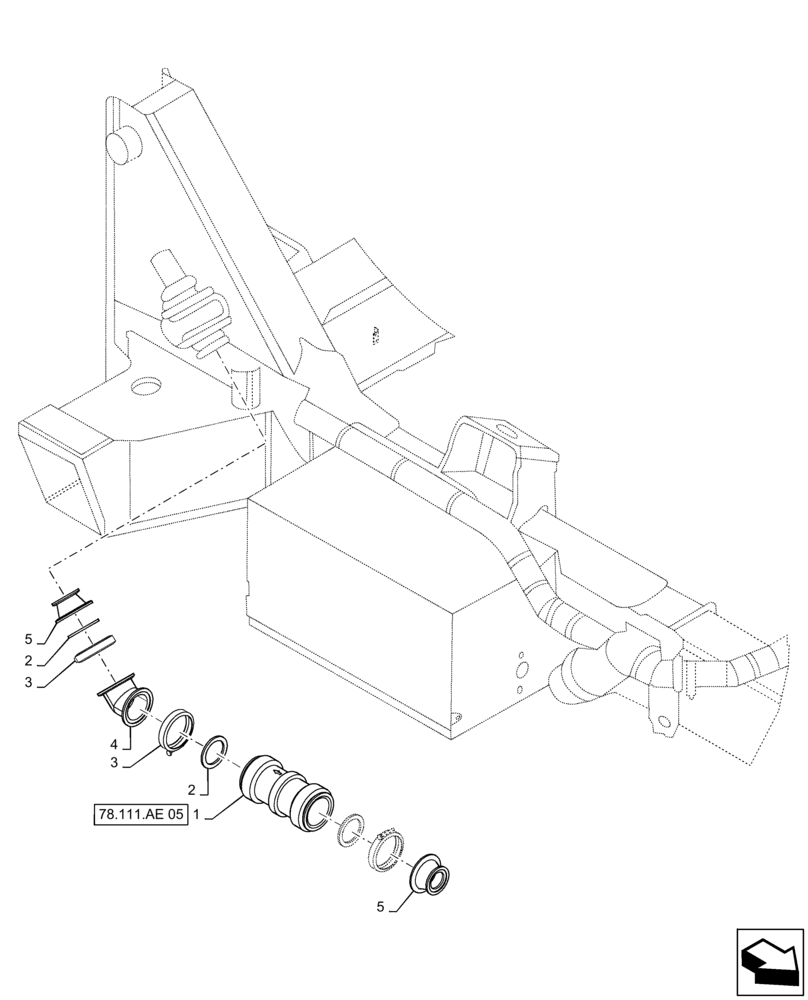

Схема запчастей Case IH PATRIOT 4440 - (78.111.AE[04]) - FLOWMETER PLUMBING, HIGH FLOW, RFM 200 (78) - SPRAYING
2
78.111.ae 05
2
3
5
5
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265852

METER

Flowmeter, RFM 200

1шт.

See 78.111.AE 05

1шт.

2

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

3шт.

3

BN321074

CLAMP,101.6mm

3" Flange

3шт.

4

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

Manifold 3" x 45º

1шт.

5

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange

2шт.
