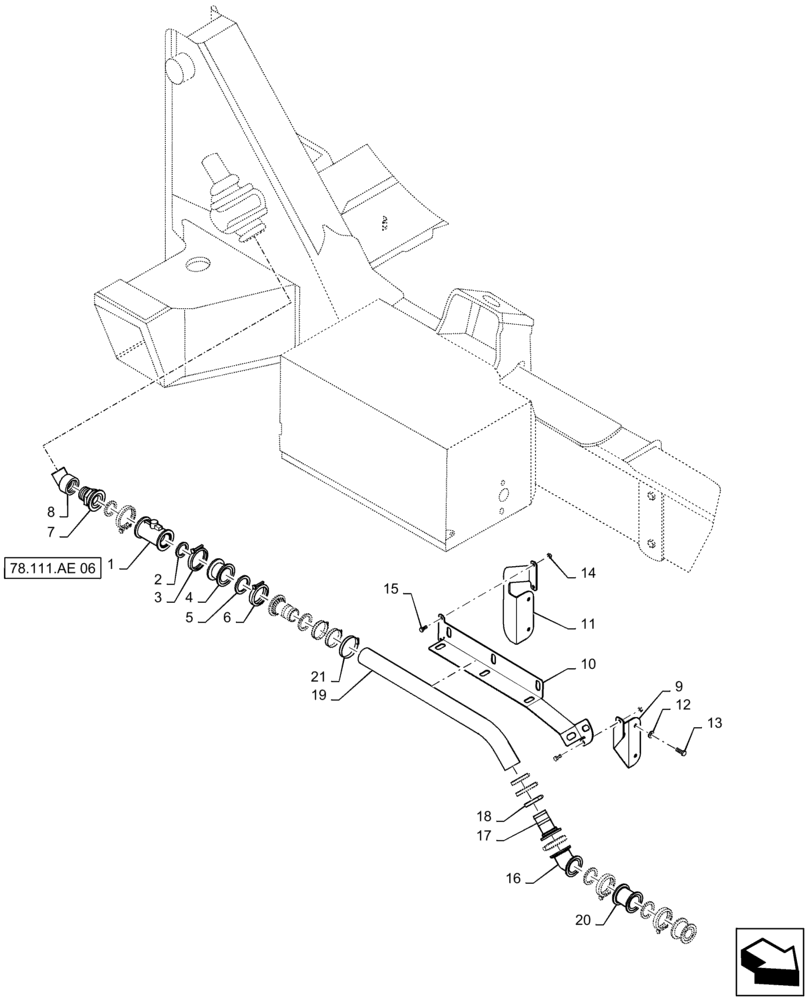

Запчасти Case IH PATRIOT 4440 (78.111.AE[03]) - FLOWMETER PLUMBING, LO-FLOW, RFM 60, BSN YGT042519 (78) - SPRAYING

1

87271267

MEASURING INSTRUMENT

Flowmeter, RFM60P

1шт.

See 78.111.AE 06

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

4

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange x 2" Flange, Poly

2шт.

5

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

4шт.

6

BN313773

CLAMP,2" Full Port

2" Flange

4шт.

7

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1 - 1/2" NPT, Poly

1шт.

8

BN310467

ELBOW

1 - 1/2" NPT x 1 - 1/2" NPT, Poly, 45º

1шт.

9

84371057

BRACKET, SUPPORTING

Hose, Front

1шт.

10

84371058

BRACKET, SUPPORTING

Hose, Mid

1шт.

11

84371059

BRACKET, SUPPORTING

Hose, Rear

1шт.

12

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

13

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

14

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

3шт.

15

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

16

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

Manifold, 2" x 45º Full Port

1шт.

17

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange x 2" Hose Barb, Poly

2шт.

18

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

4шт.

19

BN29564

HOSE

2" Bulk EPDM Suction

2.69шт.

20

BN325292

COUPLING

2" Full Port, Poly

1шт.

21

343199A1

HOSE CLAMP

#44, Stainless Steel

4шт.
