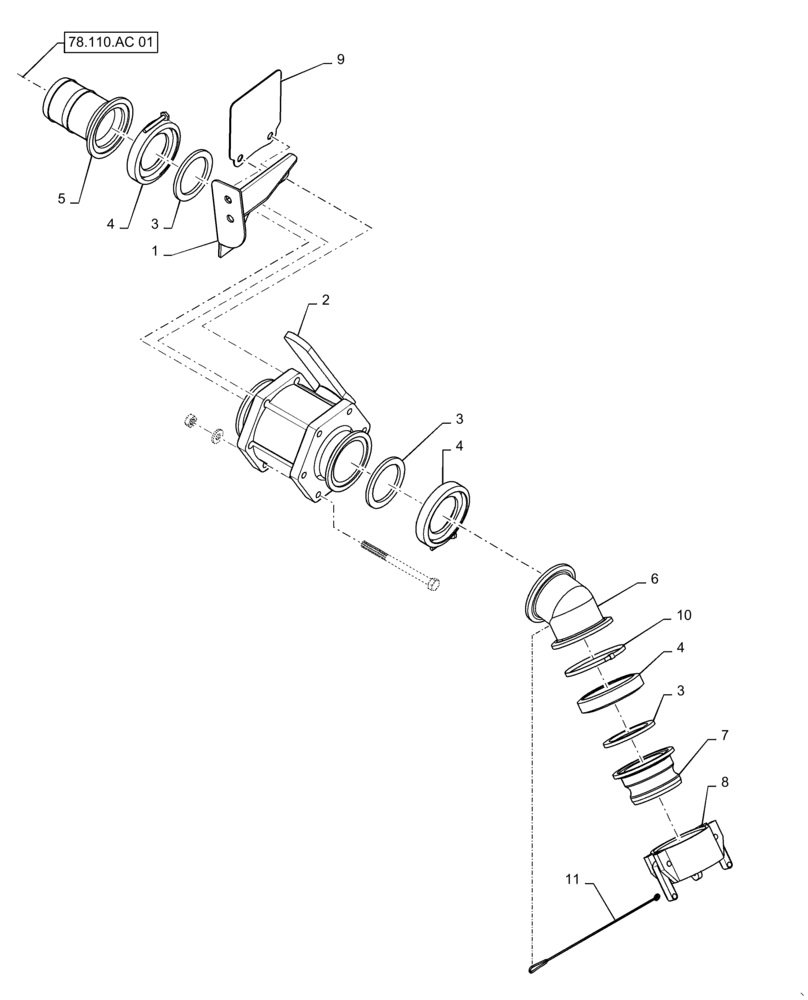

Запчасти Case IH PATRIOT 4440 (78.111.AA[04]) - PRODUCT TANK FILL, 3" PLUMBING, PRESSURE FILL (78) - SPRAYING

1

343420A1

MOUNTING PLATE

3" Fill Valve

1шт.

2

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

3

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

3шт.

4

BN321074

CLAMP,101.6mm

3" Flange

3шт.

5

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

6

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

Manifold 3" Flange x 45º

1шт.

7

343025A1

ADAPTER,3" Full Port Flange x 3" Male Adapter

Adapter, 3" Flange x 3" Cam

1шт.

8

BN2393384

CAP

Coupler 3" Dust Poly

1шт.

9

343188A1

PLATE

Tank Fill

1шт.

10

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

11

416624A1

ROPE

Nylon, 1/4" x 12"

1шт.
