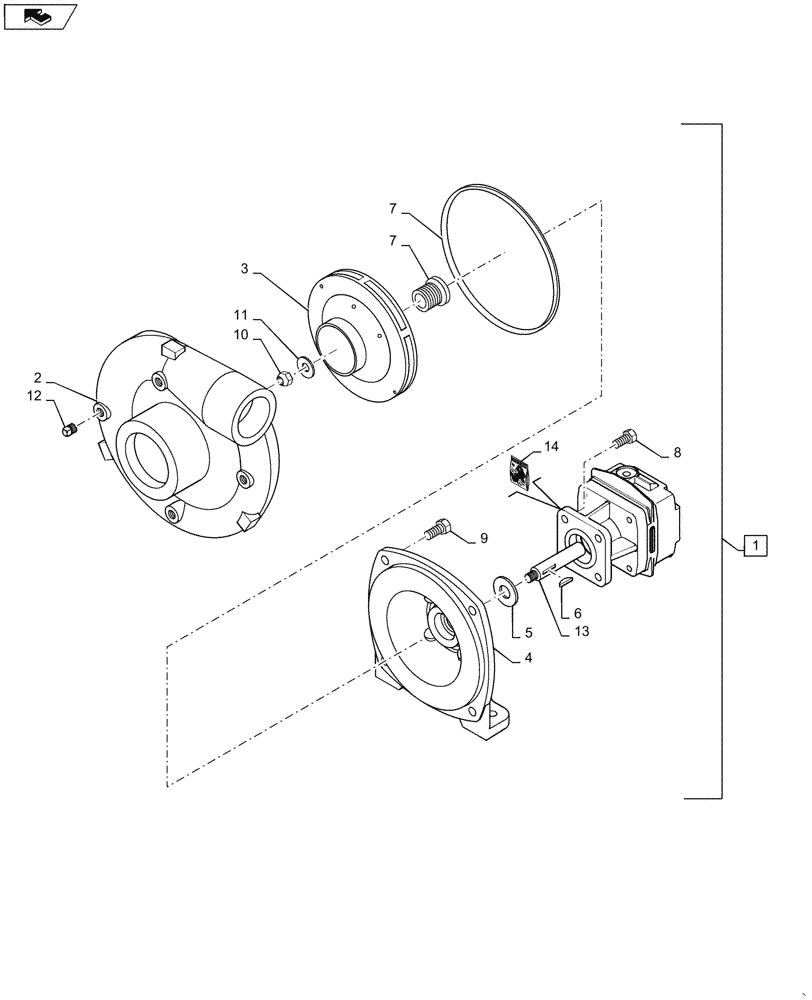

Запчасти Case IH PATRIOT 4440 (78.111.AA[03.1]) - STANDARD FLOW PRODUCT PUMP, ASN YGT042518 (78) - SPRAYING

1

47882720

WATER PUMP

Product Pump, Flanged Fittings, Incl 2 - 13

1шт.

2

47905035

HOUSING

Pump Front Casing, Flanged Inlet And Outlet

1шт.

3

344031A1

IMPELLER

CW Rotation

1шт.

4

4192

FLANGE

Pump Rear Casing, Pump Mounting Flange

1шт.

5

4194

RING

Slinger Seal

1шт.

6

6059

KEY

Shaft

1шт.

7

87265476

REPAIR KIT

Seal Kit

1шт.

8

84270018

BOLT

5/16" - 18 x 7/8"

4шт.

9

84270010

BOLT

3/8" - 16 x 7/8"

4шт.

10

4199

NUT

Impeller

1шт.

11

84272048

WASHER

Impeller

1шт.

12

4187

DRAIN PLUG

1шт.

13

47905036

MOTOR-PUMP

Product Pump

1шт.

14

48061352

SEAL KIT

Hyd Motor

1шт.
