(78.111.AA[02.1]) - PRODUCT PUMP PLUMBING ASN YGT042518

Запчасти Case IH PATRIOT 4440 (78.111.AA[02.1]) - PRODUCT PUMP PLUMBING ASN YGT042518 (78) - SPRAYING

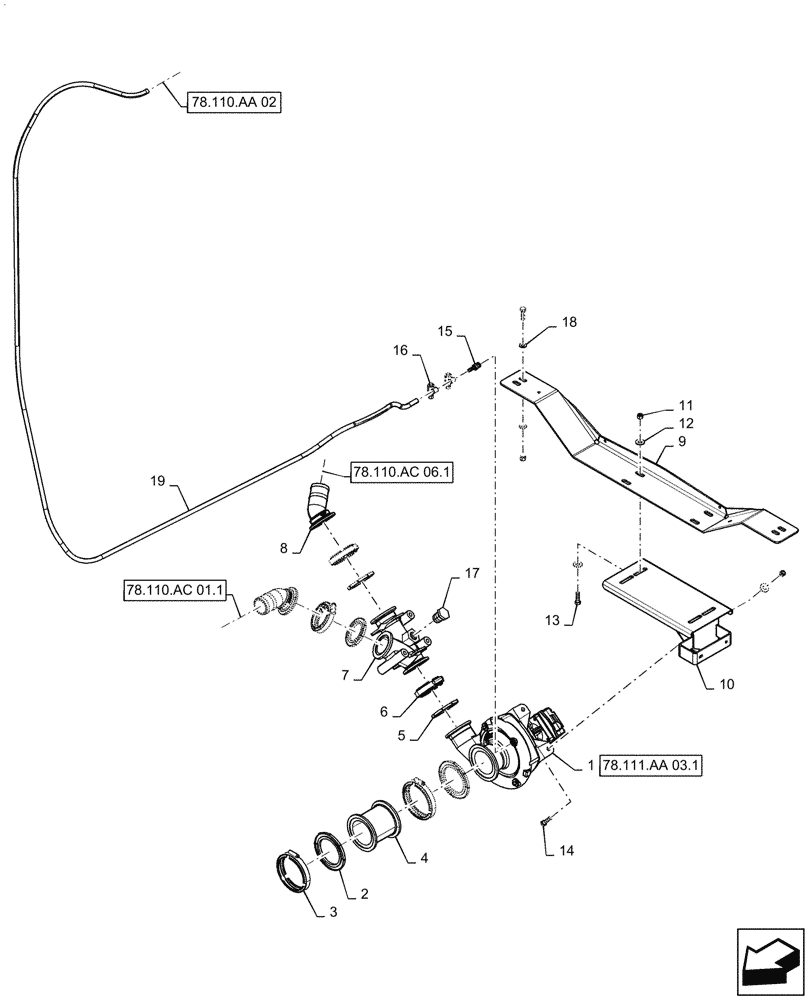

Схема запчастей Case IH PATRIOT 4440 - (78.111.AA[02.1]) - PRODUCT PUMP PLUMBING ASN YGT042518 (78) - SPRAYING
78.110.aa 02
10
8
9
7
19
11
5
2
1
16
18
4
3
12
17
6
13
15
14
78.110.ac 01.1
78.110.ac 06.1
78.111.aa 03.1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47882720

WATER PUMP

Flange Style, Complete

1шт.

2

47888707

GASKET,81mm ID x 113mm OD x 6mm Thk

2шт.

3

BN321074

CLAMP,101.6mm

2шт.

4

BN324192

TUBE

3" Flange

1шт.

5

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

3шт.

6

BN313773

CLAMP,2" Full Port

3шт.

7

87553973

FITTING

45° "Y"

1шт.

8

47421490

FITTING,2" Full Port Flange x 2" 45 Degree Hose Barb Elbow

45°, 2" Flange x 2" Hose Barb

2шт.

9

47889229

MOUNT

Frame Bracket

1шт.

10

47889227

MOUNT

Product Pump

1шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

12

495-21044

WASHER,3/8"

8шт.

13

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

14

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

15

BN72040

FITTING,1/8" MPT x 1/4" HB

1шт.

16

87485000

CLAMP,0.25" - 0.62"

2шт.

17

BN73553

PLUG

3/4" Male Pipe

1шт.

18

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

19

BN72041

HOSE

1/4" EPDM

1шт.
