(78.111.AA[02]) - PRODUCT PUMP PLUMBING, BSN YGT042519

Запчасти Case IH PATRIOT 4440 (78.111.AA[02]) - PRODUCT PUMP PLUMBING, BSN YGT042519 (78) - SPRAYING

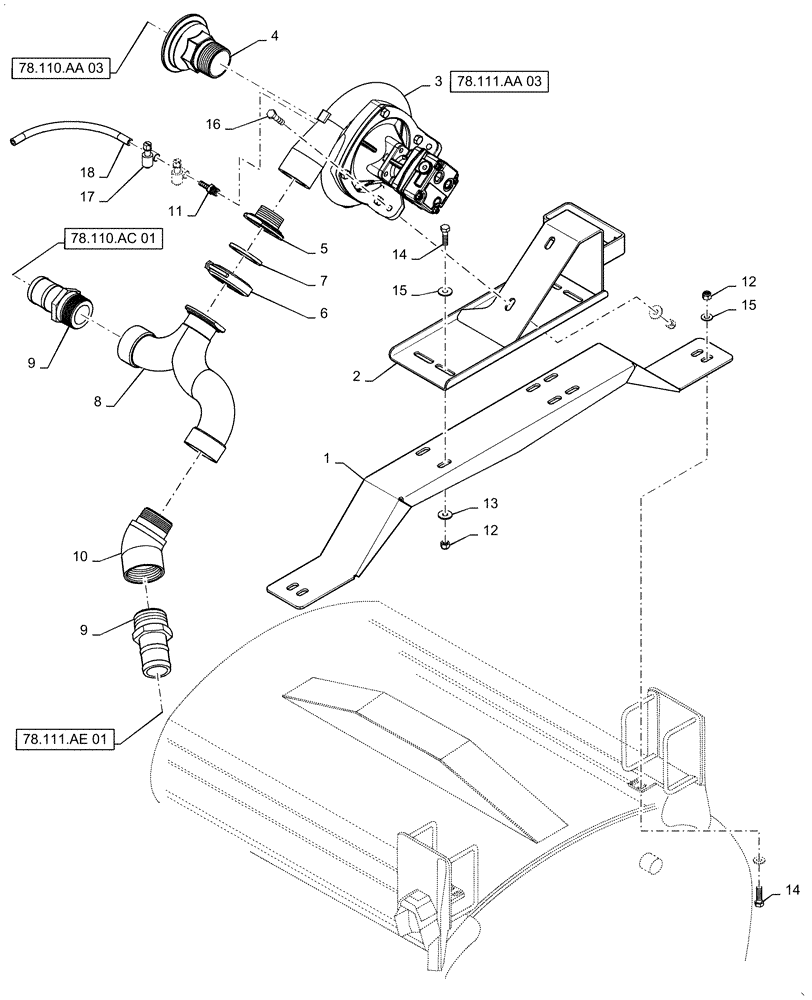

Схема запчастей Case IH PATRIOT 4440 - (78.111.AA[02]) - PRODUCT PUMP PLUMBING, BSN YGT042519 (78) - SPRAYING
16
12
10
17
78.111.ae 01
15
3
11
1
9
14
78.110.aa 03
6
78.110.ac 01
12
14
15
18
5
7
2
78.111.aa 03
9
4
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268147

BRACKET

Product Pump Support Mount

1шт.

2

87268146

SUPPORT

Product Pump

1шт.

3

87268178

PUMP

Product Pump

1шт.

See Fig 78.111.AA 03 For Service Parts

1шт.

4

87267235

ADAPTER

3" Flange x 2" NPT

1шт.

5

BN322254

ADAPTER,2" Flange x 1 1/2" Male Thread SST

2" Full Port x 1 - 1/2" NPT

1шт.

6

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

7

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

8

87268195

MANIFOLD

Product Plumbing

1шт.

9

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

10

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45 Deg, 2" NPT POLY

1шт.

11

BN72040

FITTING,1/8" MPT x 1/4" HB

1/8" NPT x 1/4" Hose Barb

1шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

13

495-21044

WASHER,3/8"

10шт.

14

BN50258

BOLT,3/8"-16 X 1.25", Stainless

8шт.

15

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406" x 0.812" x 0.065", HTS, DOR, HDN

8шт.

16

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

17

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

2шт.

18

BN318772

HOSE,0.25" ID x 126.50"

EPDM

1шт.
