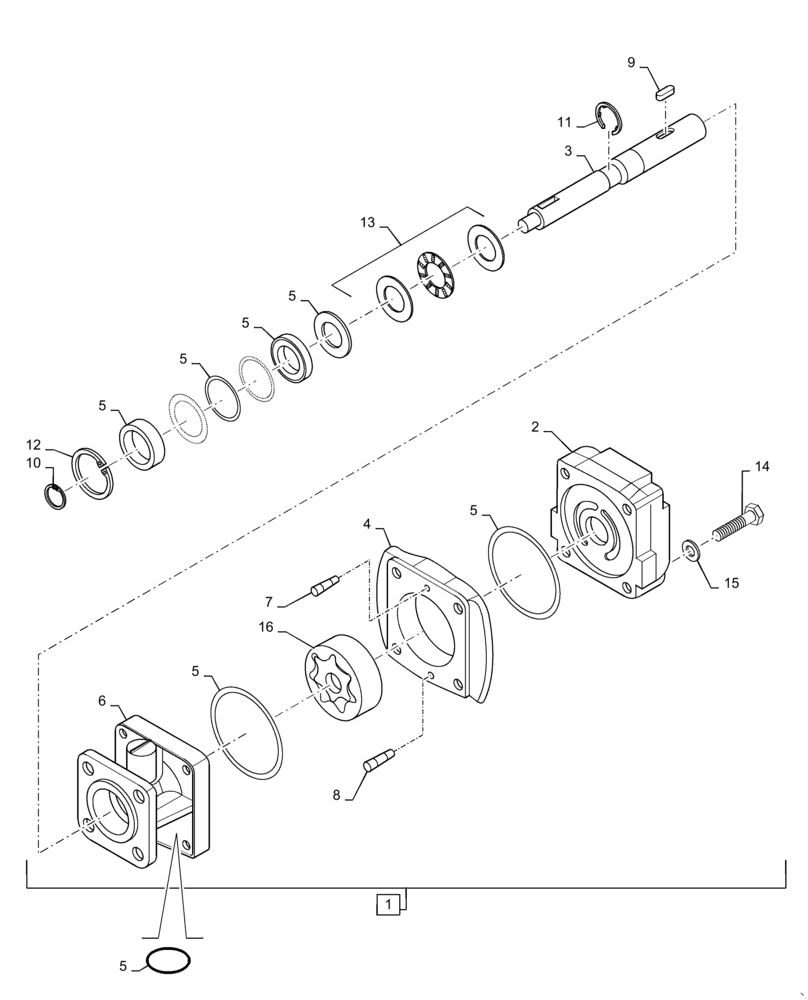

Запчасти Case IH PATRIOT 4440 (78.111.AA[01]) - STANDARD FLOW PRODUCT PUMP MOTOR BREAKDOWN, BSN YGT042519 (78) - SPRAYING

1

84389233

MOTOR-PUMP

Product Pump Motor, Incl 2 - 16

1шт.

2

84270029

COVER ASSY

End, Motor

1шт.

3

84187261

SHAFT

Product Pump Motor Shaft

1шт.

4

84270021

HOUSING

Pump Gerotor

1шт.

5

84325648

SEAL KIT

Product Pump Motor, Used on 1

1шт.

6

84364089

BODY

Front

1шт.

7

84270023

PIN

Dowel

1шт.

8

84270022

PIN

Dowel

1шт.

9

6060

ROLL PIN

Shaft Key

1шт.

10

6057

SNAP RING

1шт.

11

87578620

SNAP RING

1шт.

12

BN98259

RING

1шт.

13

87577677

BEARING ASSY

1шт.

14

84270032

BOLT

Motor cover, Pump

4шт.

15

84270031

WASHER

Motor End Plate, Pump

4шт.

16

84270026

GEROTOR

Product Pump

1шт.
