(78.110.AN [04]) - FENCE ROW, LO-FLOW, 120 BOOM

Запчасти Case IH PATRIOT 4440 (78.110.AN [04]) - FENCE ROW, LO-FLOW, 120 BOOM (78) - SPRAYING

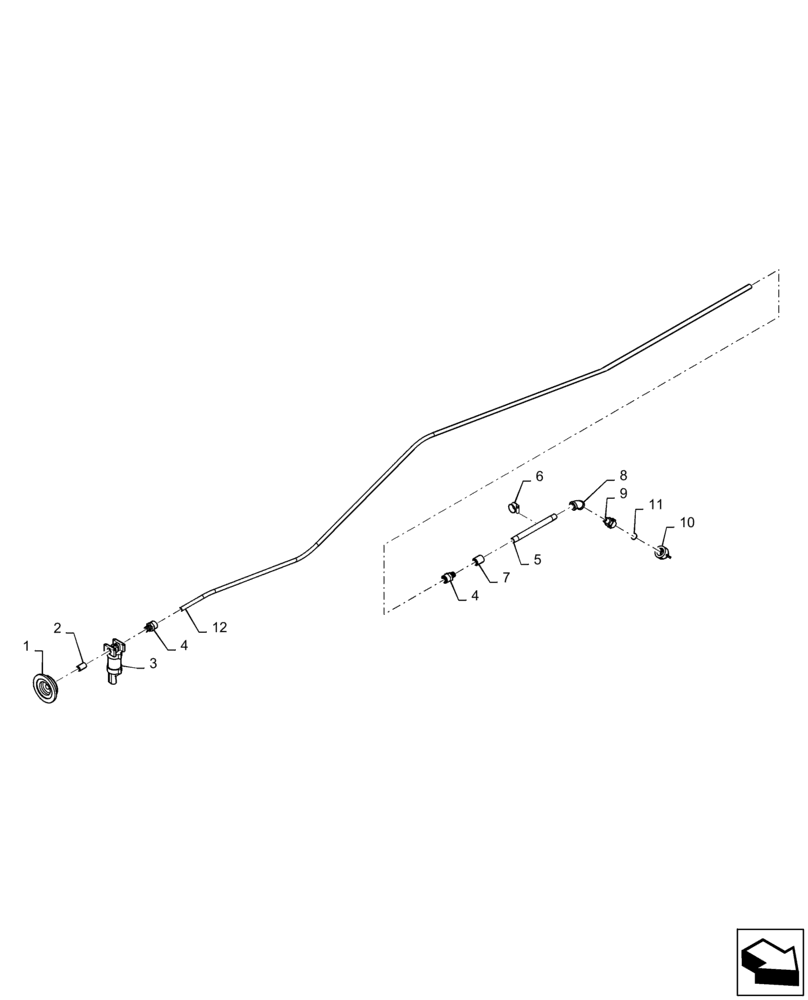

Схема запчастей Case IH PATRIOT 4440 - (78.110.AN [04]) - FENCE ROW, LO-FLOW, 120 BOOM (78) - SPRAYING
10
12
1
3
2
5
8
9
6
7
11
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265461

PLUG

2" Flange x 1/4" FPT

2шт.

2

86986808

NIPPLE

1/4" Close

2шт.

3

343778A1

SOLENOID

Valve, 1/4" NPT

2шт.

4

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

4шт.

5

BN313361

NIPPLE,1/4" NPT x 6mm SS

2шт.

6

BN324022

HOSE CLAMP

#8, SST

4шт.

7

BN73015

COUPLING

1/4" NPT, Full, SST

2шт.

8

84235806

PIPE FITTING

45 DEG, 1/4-18 FPT, SST

2шт.

9

84223253

ADAPTER

Nozzle- 1/4" MPT

2шт.

10

BN74619

CAP

With Gasket

2шт.

11

BN69558

PLUG

Spray Tip, SST

2шт.

12

BN2292088

AIR INTAKE TUBE

Bulk, 3/8", Black

1шт.
