(25.122.AD[02]) - ACTIVE SUSPENSION, CYLINDER MOUNTING

Запчасти Case IH PATRIOT 4440 (25.122.AD[02]) - ACTIVE SUSPENSION, CYLINDER MOUNTING (25) - FRONT AXLE SYSTEM

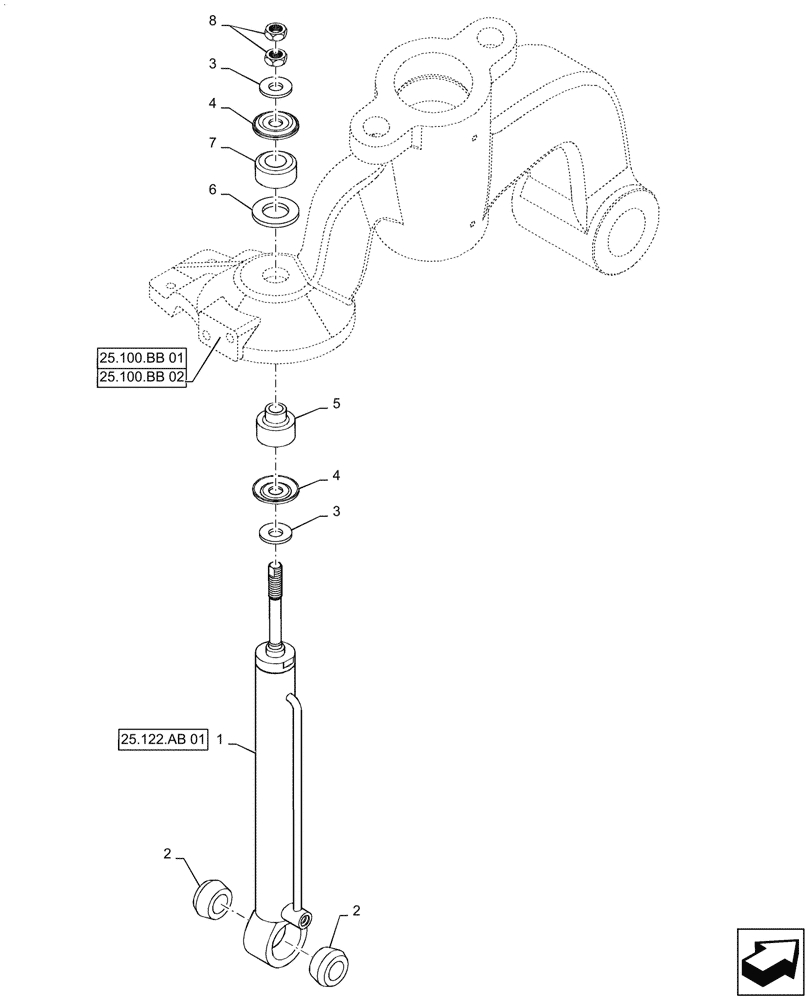

Схема запчастей Case IH PATRIOT 4440 - (25.122.AD[02]) - ACTIVE SUSPENSION, CYLINDER MOUNTING (25) - FRONT AXLE SYSTEM
25.122.ab 01
6
3
3
4
4
2
7
8
2
1
5
25.100.bb 02
25.100.bb 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN320608

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 263.65mm Stroke

Active Suspension, 1.38 x 10.38 x .88

1шт.

See 25.122.AB 01 For Service Parts

1шт.

1

BN320608R

REMAN-HYD CYLINDER

Active Suspension, 1.38 x 10.38 x .88

1шт.

1

BN320608C

CORE-HYD CYLINDER

Return Number

1шт.

2

87269274

BUSHING,25.4mm ID x 48.01mm OD x 25.15mm L

Bushing, Lower Shock

2шт.

3

BN313204

SPRING WASHER

5/8"

2шт.

4

BN313440

WASHER

Retainer

2шт.

5

BN321661

BUSHING

Pilot Long Shock

1шт.

6

BN321990

WASHER

Spring, 1"

1шт.

7

BN313532

BUSHING,16.26mm ID x 49.4mm OD x 27.43mm L

Urethane (Red)

1шт.

8

87564738

JAM NUT

5/8-18, Gr 8

2шт.
