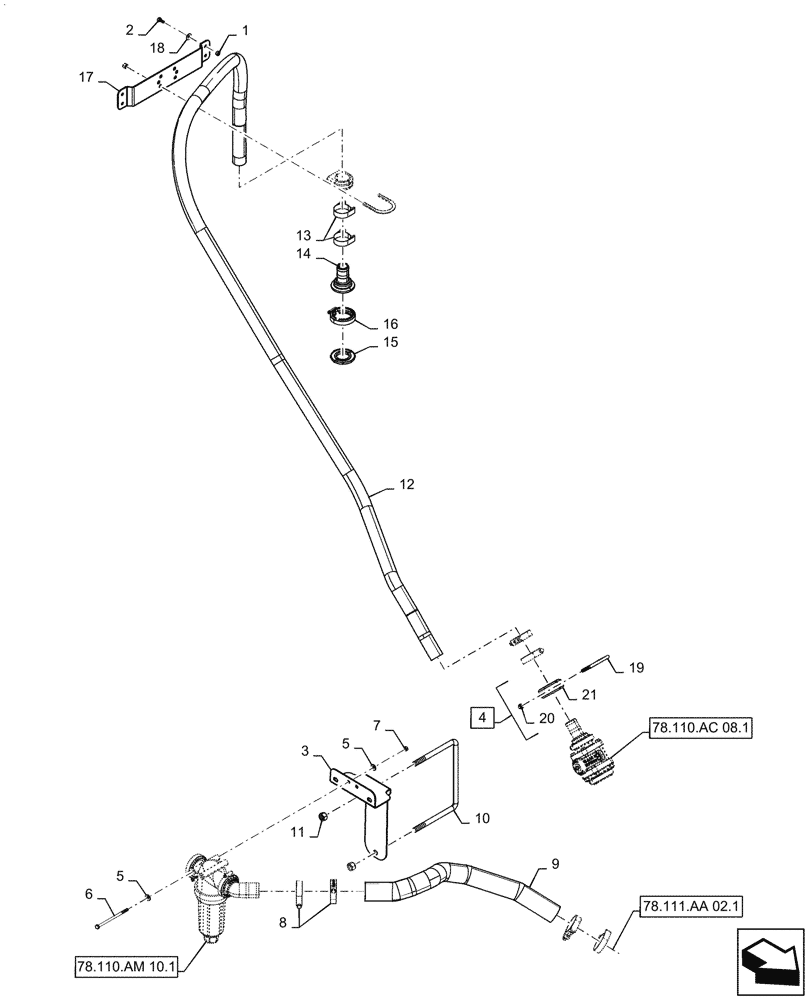

Запчасти Case IH PATRIOT 4440 (78.110.AM[09.1]) - STRAINER, THROTTLE VALVE, LO FLOW PLUMBING, ASN YGT042518 (78) - SPRAYING

1

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

2

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

3

84313733

MOUNTING PLATE

Strainer

1шт.

4

343817A1

HOSE CLAMP

1 1/2" Pipe, Incl. 19, 20, 21

2шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

6

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

8

BN2403358

CLAMP,50.8mm - 63.5mm

T - Bolt Band

4шт.

9

BN29564

HOSE

2", EPDM, Bulk, 20' Roll

1шт.

10

BN325918

U-BOLT

5/8", 10" ID

1шт.

11

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

12

BN53621

HOSE,1.50" ID BULK

20' Roll

1шт.

13

BN53811

CLAMP

2", T - Bolt Band

4шт.

14

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

1шт.

15

47888705

GASKET

Flange, EPDM

1шт.

16

BN303199

CLAMP,2" Flange

1шт.

17

BN325194

BRACKET, SUPPORTING

Center Section

1шт.

18

BN50142

WASHER,5/16", Stainless Steel

4шт.

19

343819A1

U-BOLT

3/8" - 16

2шт.

20

87343970

NUT,3/8"-16, G8, DOR

4шт.

21

343818A1

CLAMP

Insert

2шт.
