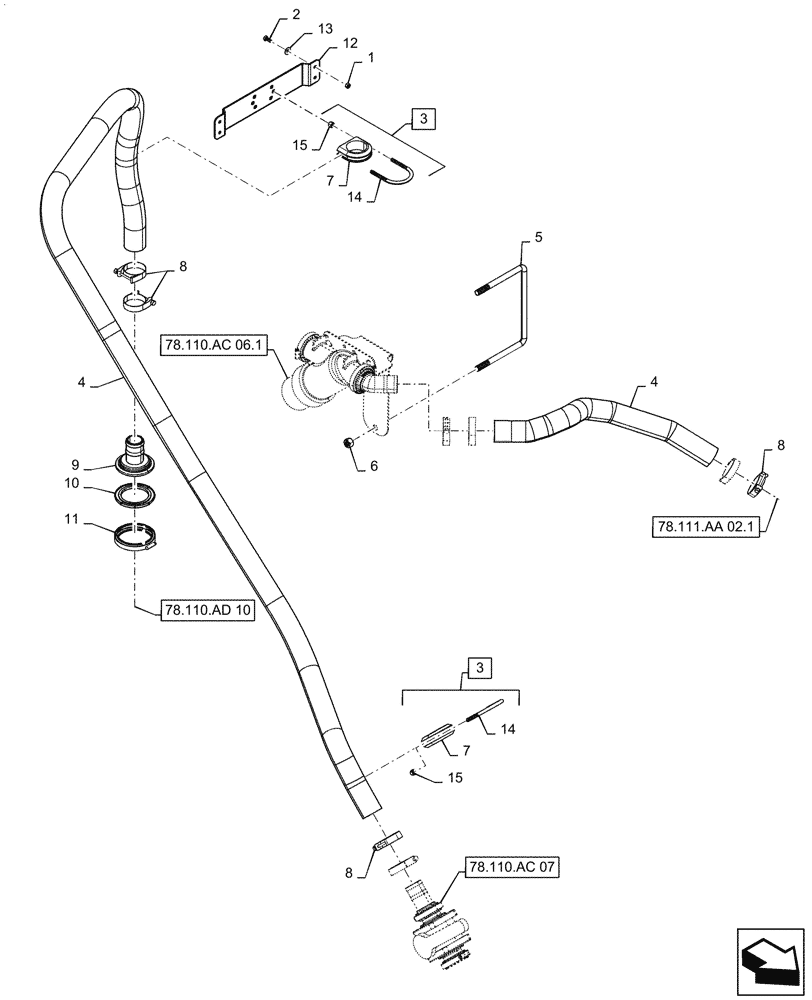

Запчасти Case IH PATRIOT 4440 (78.110.AM[07.1]) - STRAINER, THROTTLE VALVE, STANDARD FLOW PLUMBING, ASN YGT042518 (78) - SPRAYING

1

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

2

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

3

BN320384

U-BOLT

2" With Bushing, Incl 7, 14, 15

2шт.

4

BN29564

HOSE

2", EPDM, Bulk, 20' Roll

1шт.

5

BN325918

U-BOLT

5/8", 10" ID

1шт.

6

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

7

BN320386

PIPE CLAMP

2" Bushing

2шт.

8

BN2403358

CLAMP,50.8mm - 63.5mm

T - Bolt Band

8шт.

9

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

1шт.

10

47888707

GASKET,81mm ID x 113mm OD x 6mm Thk

1шт.

11

BN321074

CLAMP,101.6mm

1шт.

12

BN325194

BRACKET, SUPPORTING

Center Section

1шт.

13

BN50142

WASHER,5/16", Stainless Steel

4шт.

14

BN320385

U-BOLT

3/8" - 16

2шт.

15

87343970

NUT,3/8"-16, G8, DOR

4шт.
