(25.122.AD[01.1]) - ACTIVE SUSPENSION LINES, ASN YGT044000

Запчасти Case IH PATRIOT 4440 (25.122.AD[01.1]) - ACTIVE SUSPENSION LINES, ASN YGT044000 (25) - FRONT AXLE SYSTEM

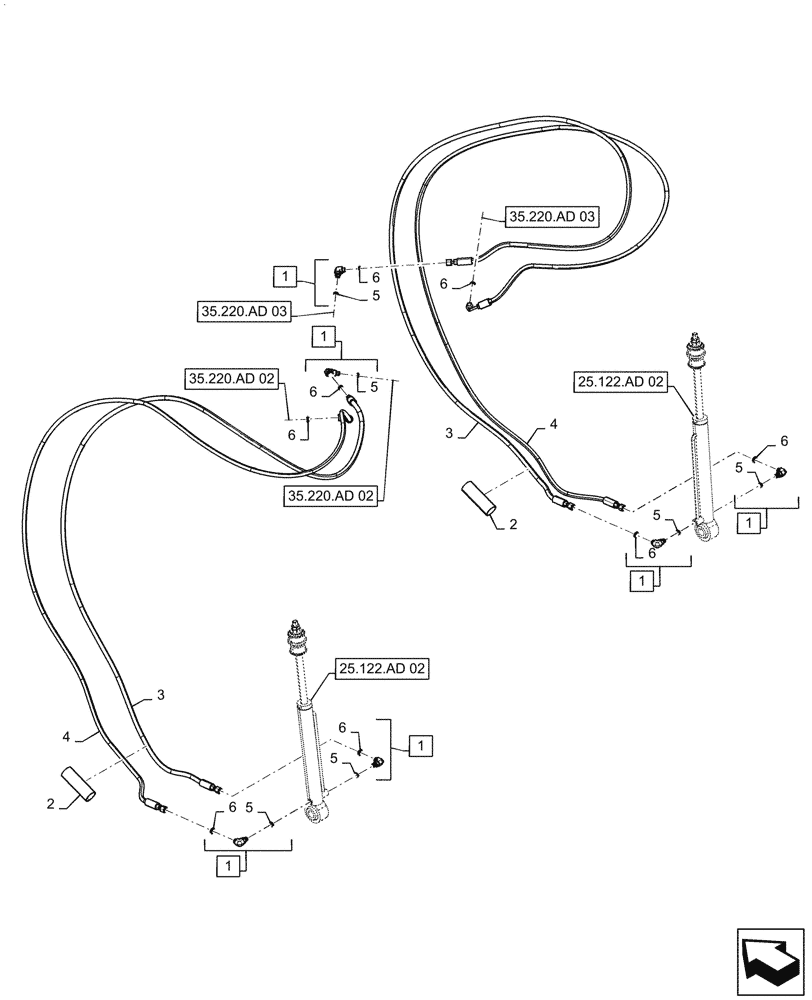

Схема запчастей Case IH PATRIOT 4440 - (25.122.AD[01.1]) - ACTIVE SUSPENSION LINES, ASN YGT044000 (25) - FRONT AXLE SYSTEM
5
6
3
2
3
1
1
5
4
5
2
6
6
6
5
6
1
5
1
6
4
1
5
6
6
1
35.220.ad 02
35.220.ad 02
25.122.ad 02
25.122.ad 02
35.220.ad 03
35.220.ad 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, Incl 5, 6

6шт.

2

BN322741

SLEEVE

Hose, 1 3/8" ID X 12" Long

2шт.

3

48033915

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Short Straight x 9/16" - 18 ORFS Swivel Short Straight x 1/4" ID x 11' 4 1/2" Long, Steel Line to Cylinder

2шт.

4

48033913

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Short Elbow x 9/16" - 18 ORFS Swivel Short Straight x 1/4" ID x 11' 11" Long, Return Cross Line to Cylinder

2шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

6шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

8шт.
